Vehicle Info NeededBORGESONPART NUMBER: 153-024331

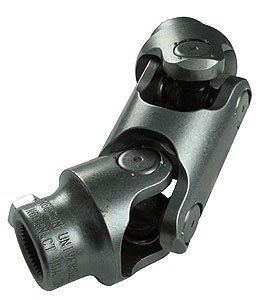

Steering Universal Joint Double Steel 1-in48 X 3/4-30
$15837
Ships Today
Lowest Price GuaranteeItems You Need
Billet Steel Double Steering Universal Joint1 in.-48 Spline x 3/4 in.-30 Spline 70 Degree Maximum Operating Angle Sealed Needle Bearings, Zero Radial Play 5.125 in. Overall Length Sold Individually
When the steering shaft has to change direction more than a single joint can handle, a double universal joint splits the angle across two crosses. This Borgeson double joint is machined from solid billet steel and connects a 1 in.-48 Spline shaft to a 3/4 in.-30 Spline shaft at up to 70 degrees.
Borgeson 024331 Double Steering Universal Joint Features:
- Precision machined from solid billet steel
- 1 in.-48 Spline x 3/4 in.-30 Spline bores
- Double joint design handles up to a 70 degree operating angle
- Zero radial play for a precise steering connection
- Maintenance-free sealed needle bearing design
- 5.125 in. overall length
- Sold individually
Part TypeSteering Shaft Universal Joint
BrandBORGESON
Package Height1.75
Package Width4.75
Package Length5.125 in
Weight1.35 PG
Part CategoryReplacement Parts
Shaft End 1 (In.)1 in-48 spline
End 2 Spline Quantity30
GreaseableNo
Steering Universal Joint StyleDouble
QuantitySold Individually
Shaft End 2 (In.)3/4 in-30 spline
MaterialSteel
End 1 Spline Quantity48
Part FitmentUniversal
FinishNatural
Vendor Part Number024331
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
