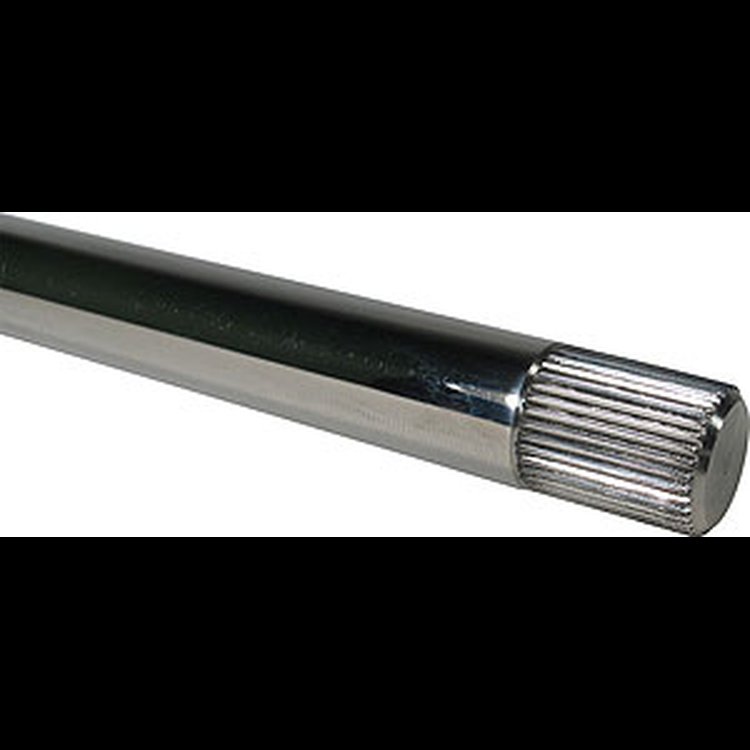

3/4-36 X 4in Long Polished Stainless Splined Shaft
InfoVehicle Info Needed
BORGESONPART NUMBER: 153-429204

3/4-36 X 4in Long Polished Stainless Splined Shaft

$8379
ShippingShips Today
Lowest PriceLowest Price Guarantee

Splined Steering Shaft
  • 3/4 in. Diameter, 36 Splines
  • 4 in. Overall Length
  • Splined 7/8 in. on Each End
  • Polished Stainless Steel
  • Sold Individually

    Custom steering linkages rarely line up with an off-the-shelf shaft length, so Borgeson offers splined shafts in a wide range of sizes. This 4 in. polished stainless steel shaft is 3/4 in. in diameter with 36 splines cut 7/8 in. on each end to slide straight into matching 3/4 in.-36 spline universal joints.

    Borgeson 429204 Splined Steering Shaft Features:

    • 3/4 in. diameter with 36 splines
    • Splined 7/8 in. on each end
    • 4 in. overall length
    • Polished Stainless Steel construction
    • Mates with 3/4 in.-36 spline universal joints
    • Universal joints sold separately
    • Sold individually
    • Part TypeSteering Shaft
    BrandBORGESON
    Package Height0.75
    Package Width0.75
    Package Length4 in
    Weight0.42 PG
    Part CategoryReplacement Parts
    Steering Shaft FinishPolished
    End 2 Type3/4 in 36-spline
    Steering Box Splines36
    Spline Quantity36
    Rag Joint IncludedNo
    QuantitySold Individually
    Overall Length4 in (101.6 mm)
    MaterialStainless Steel
    Column Splines36
    End 1 Type3/4 in 36-spline
    Vibration Damper IncludedNo
    Steering Shaft MaterialStainless steel
    CollapsibleNo
    Part FitmentUniversal
    Shaft StyleSplined ends
    Universal Joints IncludedNo
    FinishPolished
    Diameter0.750 in
    Vendor Part Number429204
    Package Qty1
    Package TypeEA
    Some parts are not legal for use in California or other states with similar laws / regulations
