Vehicle Info NeededBORGESONPART NUMBER: 153-429216

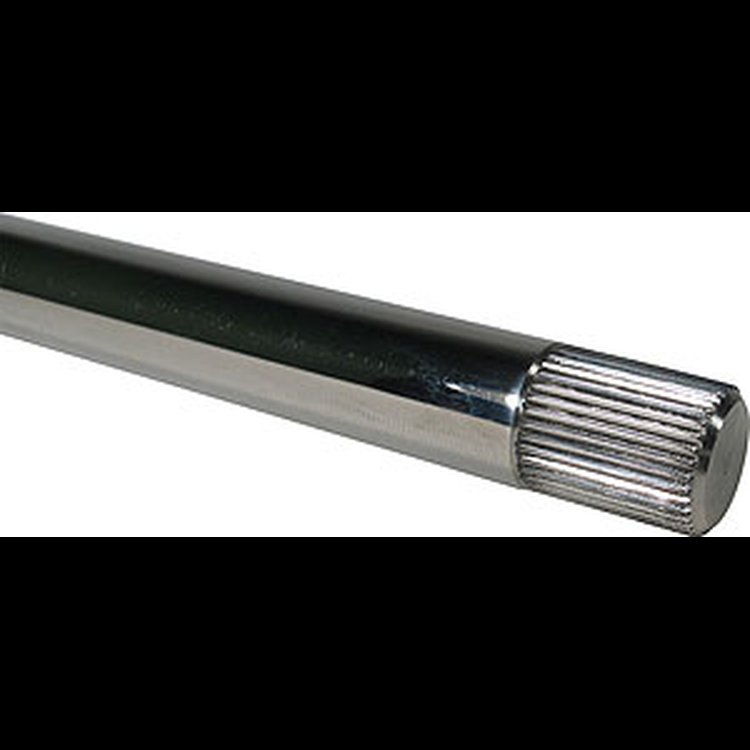

3/4-36 X 16in Long Polished Stainless Splined Shaft
$8379
Ships on 11/02/2026
Lowest Price GuaranteeSplined Steering Shaft3/4 in. Diameter, 36 Splines 16 in. Overall Length Splined 7/8 in. on Each End Polished Stainless Steel Sold Individually
Custom steering linkages rarely line up with an off-the-shelf shaft length, so Borgeson offers splined shafts in a wide range of sizes. This 16 in. polished stainless steel shaft is 3/4 in. in diameter with 36 splines cut 7/8 in. on each end to slide straight into matching 3/4 in.-36 spline universal joints.
Borgeson 429216 Splined Steering Shaft Features:
- 3/4 in. diameter with 36 splines
- Splined 7/8 in. on each end
- 16 in. overall length
- Polished Stainless Steel construction
- Mates with 3/4 in.-36 spline universal joints
- Universal joints sold separately
- Sold individually
Part TypeSteering Shaft
BrandBORGESON
Package Height0.8
Package Width2.7
Package Length16 in
Weight2.0 PG
Part CategoryReplacement Parts
Steering Shaft FinishPolished
End 2 Type3/4 in 36-spline
Steering Box Splines36
Spline Quantity36
Rag Joint IncludedNo
QuantitySold Individually
Overall Length16 in (406.4 mm)
MaterialStainless Steel
Column Splines36
End 1 Type3/4 in 36-spline
Vibration Damper IncludedNo
Steering Shaft MaterialStainless steel
CollapsibleNo
Part FitmentUniversal
Shaft StyleSplined ends
Universal Joints IncludedNo
FinishPolished
Diameter0.750 in
Vendor Part Number429216
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
