Vehicle Info NeededBORGESONPART NUMBER: 153-720000

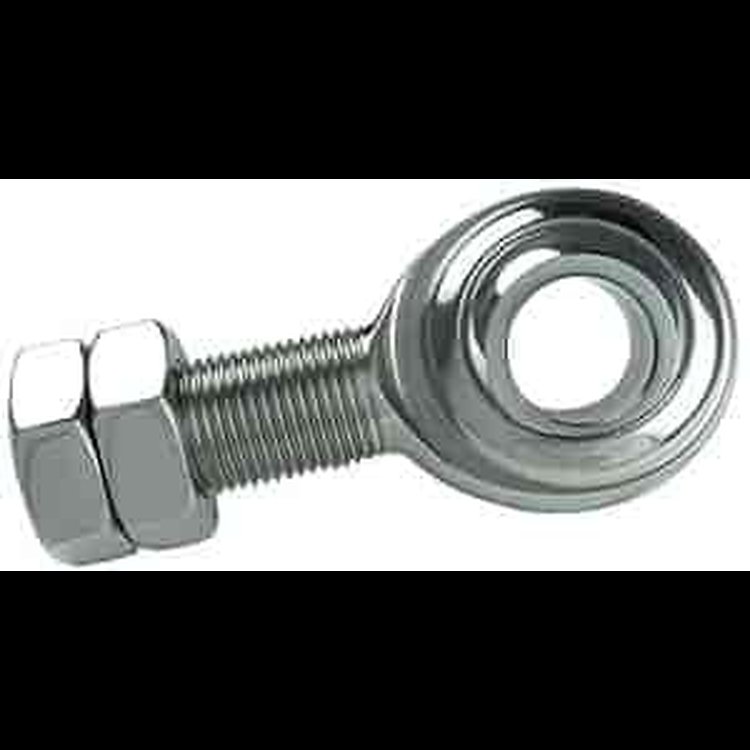

3/4" Steering Shaft Support Rod End Polished Stainless Steel
$10313
Ships on 09/08/2026
Lowest Price GuaranteeSupport Rod Ends
- 3/4'' Steering Shaft Support Rod End
- Polished Stainless Steel
Dimensions: - Rod End Head Bore Size: 3/4 in.
- Overall Length (in): 3.750 in.
- Rod End Centerline Length: 2.875 in.
- Thread Length: 1.750 in.
- If more than two joints are used in a steering system, a Borgeson support bearing must be used to prevent ''looping'' and binding. Use of a vibration reducer and two u-joints will also call for a support bearing to be used. Sheet metal will not stand up to the stresses. The steering shaft should fit easily through the support so there is no binding. A system with a double u-joint and a single u-joint counts as a three joint system and would require a Borgeson support bearing. Features:
- Prevents binding and looping
- Allows use of multiple joints for complex steering systems
Part TypeSteering Shaft Support Bearing
Product LineBorgeson Steering Shaft Support Bearings
BrandBORGESON
Package Height1.4
Package Width3.7
Package Length5.2
Weight0.72 PG
Part CategoryReplacement Parts
Rod End AttachmentMale Threads
Steering Shaft Support Bearing FinishPolished
Thread Length1.75 in (44.5 mm)
Rod End Head Bore Size0.75 in (19.1 mm)
Rod End Thread Size (In.)3/4-16 RH
QuantitySold individually
Overall Length3.75 in (95.3 mm)
Rod End Centerline Length2.875 in (73 mm)
Jam Nut IncludedYes
Steering Shaft Support Bearing TypeRod end
Steering Shaft Support Bearing MaterialStainless steel
Grease FittingNo
Rod End Construction2-piece
Rod End StyleSpherical
Vendor Part Number720000
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
