Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

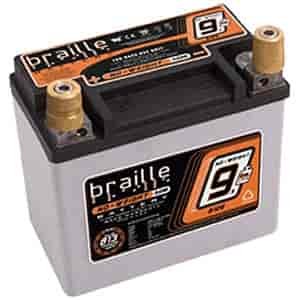

Advanced AGM Lightweight Racing Battery
- *USED - Advanced AGM Lightweight Racing Battery
- 9.5 lbs
- 5.8'' L x 3.4'' W x 5.1'' H
- Cold Cranking Amps: 323
- Cranking Amps: 526
- 813 (PCA) Pulse Cranking Amps
- Left Side Positive
Model Information
Model Number: Braille SKU #B129
Model Name: 9.5lb Race Battery
Physical Specifications
BCI Group: Usable for all Group Sizes
Length: 5.8"
Width: 3.4"
Height (without posts): 5.1"
Minimum Weight:9.5 lbs
Performance
Voltage: 12 volts
Full Charge Voltage: 13.8 volts
Short Circuit Current (Max cranking Amps): 760
Pulse Cranking Amps (PCA) 5 sec @ 80F: 813
Pulse Cranking Amps (PCA) 10 sec @ 80F: 711
Pulse Cranking Amps 20 sec @ 80F: 627
Cranking Amps 30 sec @ 80F: 526
Cranking Amps 30 sec @ 32F: 436
Cold Cranking Amps 30 sec @ 0F: 323
Reserve Capacity: Less than 20 minutes
Capacity (C/20 rate): 12 amp hr
Internal Resistance: 4.5 miliohms (.0045 ohms)
Life Cycle @ 100% DOD: 1800-2000 cycles est
Small Batteries, Big Power
Barely tipping the scales, Braille Advanced AGM Lightweight Racing Batteries trim nearly 25 pounds of weight or more off of most vehicles. These environmentally safe batteries feature a patented "sealed valve regulated" design that completely eliminates acid spills and corrosion. Dual removable terminals allow for mounting in a variety of vertical or horizontal positions. Every Braille battery is performance certified and fully charged before shipping.
Product LineBraille Advanced AGM Lightweight Racing Batteries
BrandBRAILLE BATTERY
Package Height5.6
Package Width10.3
Package Length10.5
Weight10.07 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
