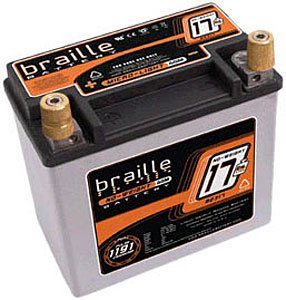

*USED - Advanced AGM Lightweight Racing Battery 17 lbs

Name: *USED - Advanced AGM Lightweight Racing Battery 17 lbs
Brand: BRAILLE BATTERY
SKU: 147-B2317RU
Price: 226.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Advanced AGM Lightweight Racing Battery

17 lbs
6.8'' L x 4.0'' W x 6.1'' H
Cold Cranking Amps: 475
Cranking Amps: 770
1191 (PCA) Pulse Cranking Amps
Right Side Positive

Available in left and right side positive terminals for an awesome dual battery configuration! Used by top NASCAR teams to get them to victory.
PERFORMANCE
Voltage: 12 volts
Full Charge Voltage: 13.8 volts
Short Circuit Current (Max cranking Amps): 2700
Pulse Cranking Amps (PCA) 5 sec @ 80F: 1191
Pulse Cranking Amps (PCA) 10 sec @ 80F: 1041
Pulse Cranking Amps (PCA) 20 sec @ 80F: 920
Cranking Amps 30 Sec @ 80F: 770
Cranking Amps 30 Sec @ 32F: 641
Cold Cranking Amps @ 0F: 475
Reserve Capacity: 45 minutes
Capacity (C/20 rate): 23 amp hr
Internal Resistance (ohms): 4.25 milliohms (.00425ohms)
Life Cycle @ 100% DOD: 3100 cycles
PHYSICAL SPECS
Durable Virgin Poly Casing, Horizontal and Vertical Mounting
Terminal Positions: Right Positive / Left Negative
BCI Group: Usable for all Group Sizes
Length: 6.8"
Width: 4.0"
Height: 6.1"
Minimum Weight (lbs): 16.6 lbs
Post Type: SAE Automotive Vertical or Horizontal + Bolt through style accepted.
Stainless Stud: Both Automotive SAE Posts and Race Style Bolts are Stainless with a 6 x 1.0mm bolt pitch

Small Batteries, Big Power

Barely tipping the scales, Braille Advanced AGM Lightweight Racing Batteries trim nearly 25 pounds of weight or more off of most vehicles. These environmentally safe batteries feature a patented "sealed valve regulated" design that completely eliminates acid spills and corrosion. Dual removable terminals allow for mounting in a variety of vertical or horizontal positions. Every Braille battery is performance certified and fully charged before shipping.

Product LineBraille Advanced AGM Lightweight Racing Batteries

BrandBRAILLE BATTERY

Package Height6.6

Package Width8.5

Package Length9.2

Weight17.53 PG

Part CategoryPerformance Parts

Package Qty1

Package TypeEA
