This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- *Used*
- 17 lbs
- 6.8'' L x 4.0'' W x 6.1'' H
- Cold Cranking Amps: 475
- Cranking Amps: 770
- 1191 (PCA) Pulse Cranking Amps
- Left Side Positive
Available in left and right side positive terminals for an awesome dual battery configuration! Used by top NASCAR teams to get them to victory.PERFORMANCE
Voltage: 12 volts
Full Charge Voltage: 13.8 volts
Short Circuit Current (Max cranking Amps): 2700 est
Pulse Cranking Amps (PCA) 5 sec @ 80F: 1191
Pulse Cranking Amps (PCA) 10 sec @ 80F: 1041
Pulse Cranking Amps (PCA) 20 sec @ 80F: 920
Cranking Amps 30 Sec @ 80F: 770
Cranking Amps 30 Sec @ 32F: 641
Cold Cranking Amps @ 0F: 475
Reserve Capacity: 45 minutes
Capacity (C/20 rate): 23 amp hr
Internal Resistance (ohms): 4.25 milliohms (.00425ohms)
Life Cycle @ 100% DOD: 3100 cyclesPHYSICAL SPECS
Durable Virgin Poly Casing, Horizontal and Vertical Mounting
Terminal Positions: Left Positive / Right Negative
BCI Group: Usable for all Group Sizes
Length: 6.8"
Width: 4.0"
Height: 6.1"
Minimum Weight (lbs): 16.6 lbs
Post Type: SAE Automotive Vertical or Horizontal + Bolt through style accepted.
Stainless Stud: Both Automotive SAE Posts and Race Style Bolts are Stainless with a 6 x 1.0mm bolt pitch

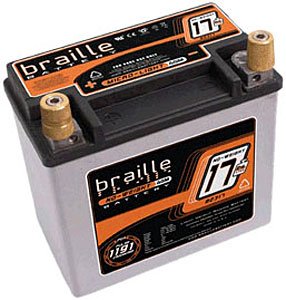

Advanced AGM Lightweight Racing Battery
