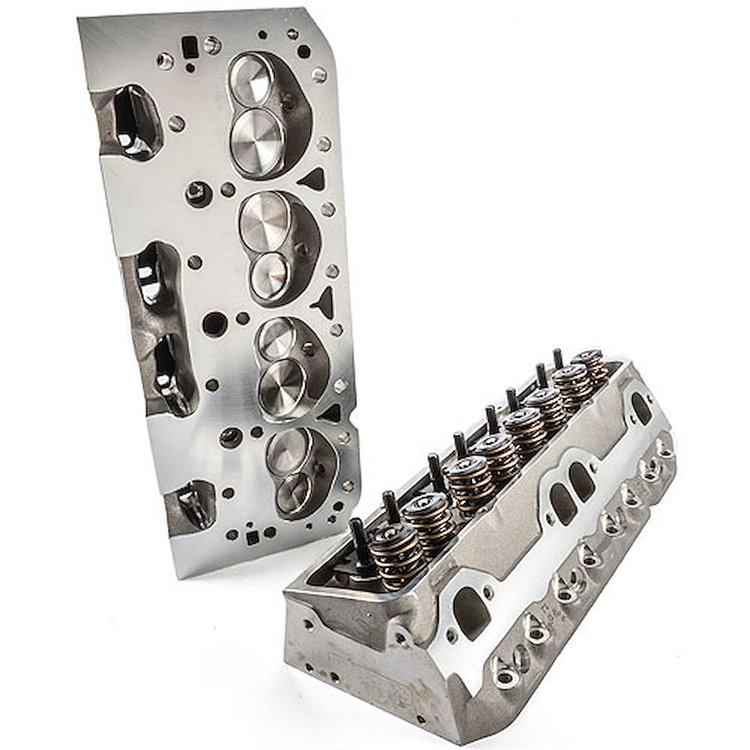

Track 1 Series Cylinder Heads 221cc Intake Ports

Name: Track 1 Series Cylinder Heads 221cc Intake Ports
Brand: BRODIX
SKU: 158-1001009S
Price: 2341.50 USD
Availability: InStock

^$2,341⁵⁰

Ships on Sep 23, 2026

Lowest Price Guarantee

Track 1 Series Cylinder Heads

64cc Combustion Chambers

221cc Intake Ports
64cc Combustion Chambers
2.055'' Intake / 1.600'' Exhaust Valves
1.550'' Dia. Springs - 140# Seat Pressure
Steel Retainers
Straight Plug
Assembled, 2/pkg.

Cylinder Head Specifications
Intake Port Volume: 221cc
Combustion Chamber Volume: 64cc
Valves: 2.055' dia. x 4.920' o.a.l. Intake / 1.600' dia. x 4.940' o.a.l. Exhaust ( 11/32' Stem Diameter )
Valve Springs: 1.550' Diameter - Open Pressure: 400 lbs.; Closed Pressure: 140 lbs.; Installed Height: 1.950'; Max Lift: .600'
Spring Retainers: 1.550' 10° Steel
Rocker Studs: 7/16'
Guide Plates: 5/16'
Valve Seals: 11/32'
Spark Plug Configuration: Straight
Facts and Related Components
Torque Heads: 70 ft-lb.
Torque Rocker Studs: 40-45 ft-lb.
Intake Gasket: Fel-Pro p/n 375-1206, Cometic p/n 245-C5414
Head Gasket: Fel-Pro p/n 375-1003 (350ci) / 375-1004 (400ci) or Cometic p/n 245-C5399 (350ci) / 245-C5403 (400ci)
Exhaust Gasket: Fel-Pro p/n 375-1406 or Cometic p/n 245-C5415
Head Bolts: ARP p/n 070-134-3601 or Manley p/n 660-42313
Head Bolt Washers: MANLEY p/n 660-42102
Head Studs: ARP p/n 070-234-4301 (12-point)
Spark Plug Specs: 14mm Thread, .750' (3/4') Reach, Gasket Seat
Valve Angle: 23°
Angle Milling: .0078' per cc
Flat Milling: .0060' per cc
Pushrod Slots: Standard
Stud Girdle: Brodix BR 6435 (p/n 158-BR6435)
Rocker Arms: Standard, T&D Economy 2256, Jesel Shaft System KPS 01001
Lifters: Standard
Exhaust Pattern: Standard
Valve Centerline: Standard
Spring Pockets: May not be cut any larger or deeper than 1.550'
Accessory Bolt Holes are Drilled
Recommended Intake Manifold: Brodix BM 1000 (p/n 158-BM1000) / HV 1000 (p/n 158-HV1000) / HV 1002 (p/n 158-HV1002) / SE 100 (p/n 158-SE100) / SE 102 (p/n 158-SE102)

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Race Ready, Right Out Of The Box!
23° Intake & Exhaust Valve Angles

Brodix offers the Track 1 Series Small Block Chevy Aluminum Cylinder Heads in a variety of configurations that are ready to bolt-on and Dominate! The Track 1 cylinder head has a 221cc intake port and a 64 or 67cc combustion chamber. This head was designed for the drag or oval track racer who wants a lighter weight cylinder head that can make a significant difference in horsepower. The Track 1X head was designed as the next step above the Track 1. An additional 20 to 25 horsepower may be gained with this head out of the box over the traditional Track 1.

Brodix has incorporated improvements such as a 40/60 valve spacing, CNC machined combustion chambers, 2.100'' intake valves, and new intake and exhaust ports. The 222cc intake port flows over 285 cfm at 700'' lift. The exhaust port flows over 195 cfm at 700'' lift. (*Track 1X requires a T&D Economy or Jesel shaft system.) The Track 1 STS Series heads are completely CNC-ported at an economical price. CNC porting ensures maximum consistency between each intake and exhaust port. The Track 1 STS Series head is available in four intake port volumes. Exhaust ports accommodate a standard Chevy pattern only. The industry standard has been taken to the next level with modernized CNC porting. Other features include a thick deck surface that is compatible with nitrous, drilled and tapped holes on the ends for standard drive accessories, phosphorous bronze valve guides and hardened valve seats installed for unleaded fuel. Sold in Pairs. !
