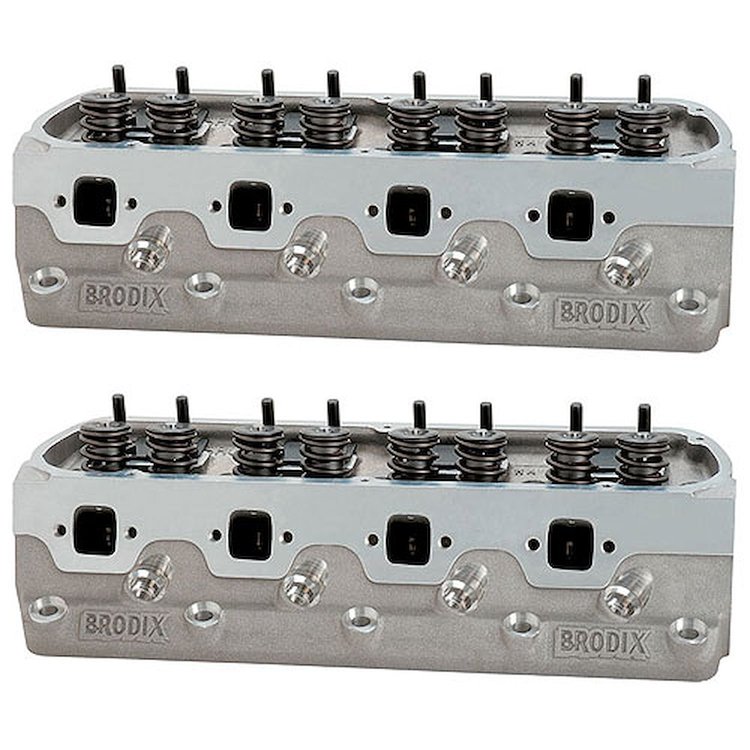

BP ST 5.0 R Series Cylinder Head CNC Ported

Name: BP ST 5.0 R Series Cylinder Head CNC Ported
Brand: BRODIX
SKU: 158-1058100
Price: 3420.16 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

BP ST 5.0 R Series Cylinder Heads

185cc Intake Port Volume

1.470'' Diameter Valve Springs - 325# Open, 125# Closed Spring Pressure100% CNC Ported

CNC Ported
185cc Intake Ports
66cc Combustion Chambers
2.020'' Intake / 1.600'' Exhaust Stainless Steel Valves
1.470'' Dia. Springs - 125# Seat Pressure
Titanium Retainers
Assembled, 2/pkg.

Cylinder Head Specifications
Intake Port Volume: 185cc
Combustion Chamber Volume: 66cc
Valves: 2.020' dia. x 4.920' o.a.l. Stainless Steel Intake / 1.600' dia. x 4.940' o.a.l. Stainless Steel Exhaust ( 11/32' Stem Diameter )
Valve Springs: 1.470' Diameter - Open Pressure: 325 lbs.; Closed Pressure: 125 lbs.; Installed Height: 1.900'; Max Lift: .575'
Spring Retainers: 1.430' 7° Titanium
Rocker Studs: N/A
Guide Plates: 5/16'
Valve Seals: 11/32'
Spark Plug Configuration: Angled
Facts and Related Components
Torque Heads: 100 ft-lb. with 1/2' Studs; 70 ft-lb. with 7/16' Studs
Torque Rocker Stands: 30 ft-lb.
Torque Rocker Studs: 40-45 ft-lb.
Intake Gasket: Fel-Pro 1250 (p/n 375-1250)
Head Gasket: Fel-Pro p/n 375-1011-1 or 375-1011-2
Exhaust Gasket: Fel-Pro p/n 375-1487
Head Bolts: ARP p/n 070-154-3605 (289-302ci); 070-154-3603 (351ci)
Head Studs: ARP p/n 070-154-4005 (289-302ci); 070-154-4203 (351ci)
Spark Plug Specs: 14mm Thread, .750' (3/4') Reach, Gasket Seat
Valve Angle: 20° Intake, 20° Exhaust
Angle Milling: N/A
Flat Milling: .0060' per cc
Valve Centerline: 53/119
Rocker Arms: Ford Stock 5.0 Standard Non-Adjustable Rockers (Ford Motorsports p/n M6564-B351) for St 5.0 Series; Any Ford Roller Rockers with 7/16' Rocker Studs for ST 5.0 R Series
Lifters: Standard
Spring Pockets: May not be cut any larger or deeper than 1.550'
Accessory Bolt Holes are Drilled
Recommended Intake Manifold: Small Block Ford
Air Tube: Stock air tube can be used with minor modifications

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

50+ Horsepower Increase Over Stock
Small Block Ford Heads!
20° Intake & Exhaust Valve Angles

The Brodix ST 5.0 Series cylinder head was developed to fit the Ford Windsor engine. Out of the box, completely assembled ST 5.0 series heads produce a 50 horsepower increase over other stock heads, and the combustion chambers may be milled into the mid-50cc range. All existing stock Ford 5.0L accessories (including the stock non-adjustable rocker arms which are required use on the ST 5.0 series) can be used in the installation of the Brodix ST 5.0 series. A modified version, the Brodix ST 5.0 R series, allows the use of 7/16'' Ford roller rockers.

The exhaust ports are raised .500'' higher than stock Windsor heads on both versions. The BP ST 5.0 R series is completely CNC ported and outflows all other heads in its class. While creating the 100% CNC Ported BP ST 5.0 R series, the professionals at Brodix invested many long hours on the flow bench and at the track developing a completely ported cylinder head. The bottom line is that Brodix builds you the most accurate, best flowing out-of-the-box cylinder heads available at the best price. Every casting is poured from A-356 virgin aluminum and tested before Brodix utilizes their in-house processes such as finish machining and heat treating to assure that you receive the best products for your hard-earned money. Other features include a thick deck surface that is compatible with nitrous, drilled and tapped holes on the ends for standard drive accessories, phosphorous bronze valve guides and hardened valve seats installed for unleaded fuel. Sold in Pairs, 2/pkg. !
