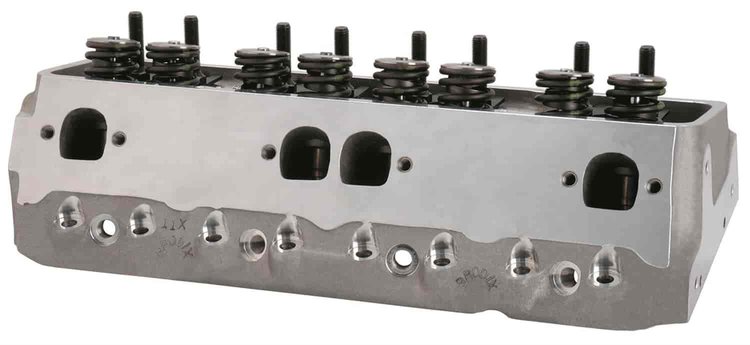

BP LH 17 195 Series Cylinder Head CNC Ported

Name: BP LH 17 195 Series Cylinder Head CNC Ported
Brand: BRODIX
SKU: 158-1078100
Price: 2594.89 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

BP LH 17 195 Series Cylinder Heads

195cc Intake Port Volume

1.470'' Diameter Valve Springs - 325# Open, 125# Closed Spring Pressure

100% CNC Ported

CNC Ported
195cc Intake Ports
60cc Combustion Chambers
2.020'' Intake / 1.600'' Exhaust Stainless Steel Valves
1.470'' Dia. Springs - 125# Seat Pressure
Steel Retainers
Assembled, 2/pkg.

Cylinder Head Specifications
Intake Port Volume: 195cc
Combustion Chamber Volume: 60cc
Valves: 2.020' dia. x 4.920' o.a.l. Stainless Steel Intake / 1.600' dia. x 4.920' o.a.l. Stainless Steel Exhaust ( 11/32' Stem Diameter )
Valve Springs: 1.470' Diameter - Open Pressure: 325 lbs.; Closed Pressure: 125 lbs.; Installed Height: 1.860'; Max Lift: .575'
Spring Retainers: 1.430' 7° Steel
Rocker Studs: 7/16'
Guide Plates: 5/16'
Valve Seals: 11/32'
Spark Plug Configuration: Angled
Facts and Related Components
Torque Heads: 100 ft-lb. with 1/2' Studs; 70 ft-lb. with 7/16' Studs
Torque Rocker Studs: 40-45 ft-lb.
Intake Gasket: Fel-Pro 1250 (p/n 375-1250)
Head Gasket: Fel-Pro p/n 375-1011-1 or 375-1011-2
Exhaust Gasket: Fel-Pro p/n 375-1487
Head Bolts: ARP p/n 070-154-3605 (289-302ci); 070-154-3606 (351ci)
Head Studs: ARP p/n 070-154-4005 (289-302ci); 070-154-4203 (351ci)
Spark Plug Specs: 14mm Thread, .750' (3/4') Reach, Gasket Seat
Valve Angle: 17° Intake, 17° Exhaust
Angle Milling: .010' per cc
Flat Milling: .0060' per cc
Valve Centerline: 53/119
Rocker Arms: Ford 7/16' Roller Rockers
Lifters: Standard
Spring Pockets: May not be cut any larger or deeper than 1.550'
Accessory Bolt Holes are Drilled
Recommended Intake Manifold: Small Block Ford

Part TypeCylinder Head

BrandBRODIX

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part Number1078100

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations
