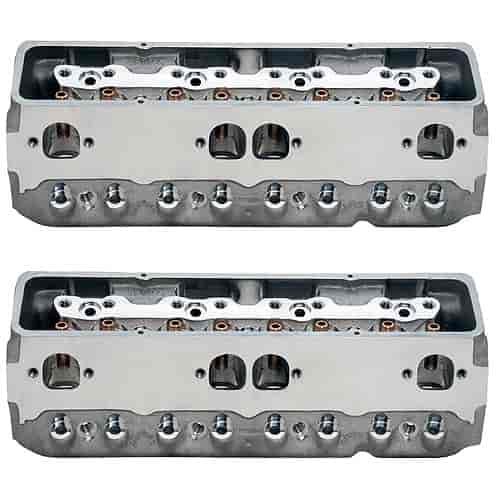

Head Hunter 229 Series Cylinder Heads68cc Combustion Chambers
- Head Hunter 229 Series Cylinder Heads
- 229cc Intake Ports
- 68cc Combustion Chambers
- 2.125'' Intake / 1.600'' Exhaust Valve Sizes
- Angle Plug
- Bare, 2/pkg.
This head is sold as an unassembled bare casting. It is finished machined and includes valve guides and valve seats installed. This head does NOT include studs, valves, springs retainers or locks.
Cylinder Head Specifications - Intake Port Volume: 229cc
- Combustion Chamber Volume: 68cc
- Valve Sizes: 2.125' Intake / 1.600' Exhaust ( 11/32' Stem Diameter )
- Spark Plug Configuration: AngledFacts and Related Components
- Torque Heads: 70 ft-lb.
- Torque Rocker Studs: 40-45 ft-lb.
- Intake Gasket: Brodix p/n 158-MG1229
- Head Gasket: Fel-Pro p/n 375-1003 (350ci) / 375-1004 (400ci) or Cometic p/n 245-C5399 (350ci) / 245-C5403 (400ci)
- Exhaust Gasket: Fel-Pro p/n 375-1406 or Cometic p/n 245-C5415
- Head Bolts: ARP p/n 070-134-3601 or Manley p/n 660-42313
- Head Bolt Washers: MANLEY p/n 660-42102
- Head Studs: ARP p/n 070-234-4301 (12-point)
- Spark Plug Specs: 14mm Thread, .750' (3/4') Reach, Gasket Seat
- Valve Angle: 23°
- Angle Milling: .0078' per cc
- Flat Milling: .0060' per cc
- Pushrod Slots: Standard
- Stud Girdle: Brodix BR 6440
- Rocker Arms: Standard, T&D Economy 40/60 2256, Jesel 40/60 Shaft System KPS 01302
- Lifters: Standard
- Exhaust Pattern: Standard
- Valve Centerline: 40/60
- Spring Pockets: May not be cut any larger or deeper than 1.550'
- Accessory Bolt Holes are Drilled
- Recommended Intake Manifold: Brodix HV 1017 (p/n 158-HV1017) / HV 1018 (p/n 158-HV1018)
Part TypeCylinder Head
BrandBRODIX
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number1098000
Package Qty1
Package TypeEA
