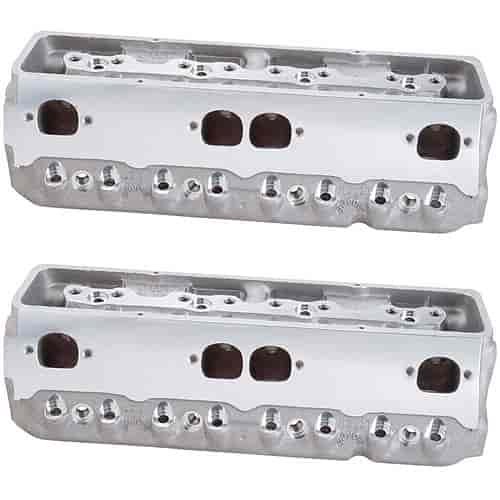

-11X Series Cylinder Heads Standard Exhaust Port

Name: -11X Series Cylinder Heads Standard Exhaust Port
Brand: BRODIX
SKU: 158-1110005
Price: 1648.20 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

-11X Series Cylinder Heads

67cc Combustion Chambers

Standard Exhaust Ports

Standard Exhaust Port
225cc Intake Ports
67cc Combustion Chambers
2.080'' Intake / 1.600'' Exhaust Valve Sizes
Angle Plug
Bare, 2/pkg.

This head is sold as an unassembled bare casting. It is finished machined and includes valve guides and valve seats installed. This head does NOT include studs, valves, springs retainers or locks.
Cylinder Head Specifications
Intake Port Volume: 225cc
Combustion Chamber Volume: 67cc
Valve Sizes: 2.080' Intake / 1.600' Exhaust ( 11/32' Stem Diameter )
Spark Plug Configuration: Angled
Facts and Related Components
Torque Heads: 70 ft-lb.
Torque Rocker Studs: 40-45 ft-lb.
Intake Gasket: Fel-Pro p/n 375-1206, Cometic p/n 245-C5414
Head Gasket: Fel-Pro p/n 375-1003 (350ci) / 375-1004 (400ci) or Cometic p/n 245-C5399 (350ci) / 245-C5403 (400ci)
Exhaust Gasket: Fel-Pro p/n 375-1406, Cometic p/n 245-C5415 (Standard Port)
Head Bolts: ARP p/n 070-134-3601 or Manley p/n 660-42313
Head Bolt Washers: MANLEY p/n 660-42102
Head Studs: ARP p/n 070-234-4301 (12-point)
Spark Plug Specs: 14mm Thread, .750' (3/4') Reach, Gasket Seat
Valve Angle: 23°
Angle Milling: .0078' per cc
Flat Milling: .0060' per cc
Pushrod Slots: 40/60
Stud Girdle: 40/60 Brodix p/n 158-BR6440
Rocker Arms: Standard, T&D Economy 40/60 2256, Jesel 40/60 Shaft System KPS 01302
Lifters: Standard
Exhaust Pattern: Standard or Spread Port
Valve Centerline: 40/60
Spring Pockets: May not be cut any larger or deeper than 1.550'
Accessory Bolt Holes are Drilled
Recommended Intake Manifold: Brodix BM 1000(p/n 158-BM1000) / HV 1000 (p/n 158-HV1000) / HV 1002 (p/n 158-HV1002) / SE 100 (p/n 158-SE100) / SE 102 (p/n 158-SE102)

Available Standard or Spread Exhaust Ports
23° Intake & Exhaust Valve Angles

The Brodix Small Block Chevy -11X Series Aluminum Cylinder Heads are available with a standard or spread exhaust port pattern. This 23° head flows 285 cfm @ .700'' lift straight out-of-the-box with as-cast runners and chambers. The BP -11X Series heads feature CNC ported combustion chambers that flow up to 316 cfm @ .700'' lift. Brodix recommends this head be installed on a 400ci+ engine. The -11X requires a special stud girdle and longer pushrods. Piston valve notches must be checked for clearance. A valve length of .150'' longer than stock is required.

Every casting is poured from A-356 virgin aluminum and tested before Brodix utilizes their in-house processes such as finish machining and heat treating to assure that you receive the best products for your hard-earned money. The industry standard has been taken to the next level with modernized CNC porting. Other features include a thick deck surface that is compatible with nitrous, drilled and tapped holes on the ends for standard drive accessories, phosphorous bronze valve guides and hardened valve seats installed for unleaded fuel. Sold in Pairs. !
