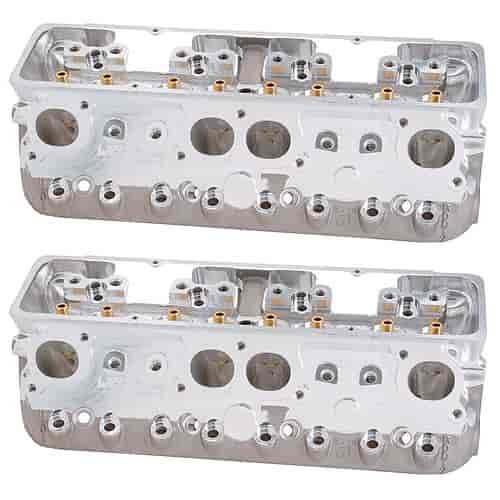

WP GB 2000 Series Cylinder Heads286cc Intake Ports 76cc Combustion Chambers 100% CNC Ported
- WP GB 2000 Series Cylinder Heads
- Lightened
- 286cc Intake Ports
- 76cc Combustion Chambers
- 2.200'' Intake / 1.580'' Exhaust Valve Sizes
- Angle Plug
- Bare, 2/pkg.
Lightened = Machined to reduce overall weight of this cylinder head. This head is sold as an unassembled bare casting. It is finished machined and includes valve guides and valve seats installed. This head does NOT include studs, valves, springs retainers or locks.
Cylinder Head Specifications - Intake Port Volume: 286cc
- Combustion Chamber Volume: 76cc
- Valve Sizes: 2.200' Intake / 1.580' Exhaust ( 11/32' Stem Diameter )
- Spark Plug Configuration: AngledFacts and Related Components
- Torque Heads: 70 ft-lb.
- Torque Rocker Studs: 40-45 ft-lb.
- Intake Gasket: Brodix p/n 158-MG2200, Cometic p/n 245-C5423
- Head Gasket: Fel-Pro p/n 375-1003 (350ci) / 375-1004 (400ci) or Cometic p/n 245-C5399 (350ci) / 245-C5403 (400ci)
- Exhaust Gasket: Brodix p/n 158-MG52464 (Trim to fit), Cometic p/n 245-C5422 (Spread Port)
- Head Studs: Brodix BR HSRP/GB CI Block
- Spark Plug Specs: 14mm Thread, .750' (3/4') Reach, Gasket Seat
- Valve Angle: 13.5°
- Angle Milling: N/A
- Flat Milling: .0060' per cc
- Pushrod Slots: Left Bare and Uncut
- Stud Girdle: N/A
- Rocker Arms: Shaft System with 85/125 Spacing - T&D 2221, Jesel KPS 20592 (Check heads for intake offset)
- Lifters: .180' Offset
- Pistons: Special 13.5° with -12 spark plug angle
- Pushrods: Special Length
- Intake Face Angle: 5°
- Exhaust Pattern: Spread Port with Stahl Bolt Pattern Header Flange
- Valve Centerline: 85/125
- Spring Pockets: 1.550' Out of the Box, May be cut to 1.625' - No larger or deeper
- Accessory Bolt Holes are Drilled
- Recommended Intake Manifold: Edelbrock 2955 with Brodix Spacers and Valley Plate
Part TypeCylinder Head
BrandBRODIX
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number1138000
Package Qty1
Package TypeEA
