Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

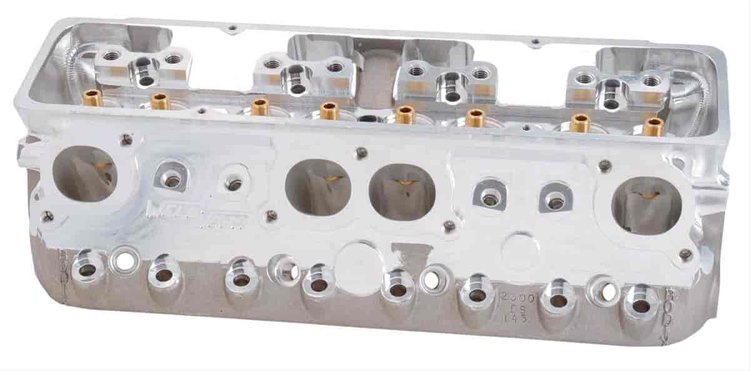

WP BD 2000 13.5° Series Cylinder Head285cc Intake Ports 74cc Combustion Chambers 100% CNC Ported
- WP BD 2000 13.5° Series Cylinder Head
- CNC Ported
- 285cc Intake Ports
- 74cc Combustion Chambers
- 2.200'' Int / 1.580'' Exh Valves
- 1.550'' Dia. Springs - 260# Seat Pressure
- Titanium Retainers
- Angle Plug
- Assembled, Sold Individually
Cylinder Head Specifications - Intake Port Volume: 285cc
- Combustion Chamber Volume: 74cc
- Valves: 2.200' dia. x 6.090' o.a.l. Titanium Intake / 1.580' dia. x 6.090' o.a.l. Steel Exhaust ( 11/32' Stem Diameter )
- Valve Springs: 1.550' Diameter - Open Pressure: 550 lbs.; Closed Pressure: 240 lbs.; Installed Height: 1.950'; Max Lift: .700'
- Spring Retainers: 1.550' 10° Titanium
- Rocker Studs: Shaft System Required
- Guide Plates: N/A
- Valve Seals: 11/32'
- Spark Plug Configuration: AngledFacts and Related Components
- Torque Heads: 70 ft-lb.
- Torque Rocker Studs: 40-45 ft-lb.
- Intake Gasket: Cometic p/n 245-C5421
- Head Gasket: Cometic p/n 245-C5404 (350ci) / 245-C5408 (400ci)
- Exhaust Gasket: Cometic 245-C542 (Symmetrical Port)
- Head Studs: Available Exclusively from Brodix - Brodix BR HS/BD CI Block (Cast Iron Block); Brodix SKHS BD (Aluminum Block)
- Spark Plug Specs: 14mm Thread, .750' (3/4') Reach, Gasket Seat
- Valve Angle: 13.5°
- Angle Milling: .0065' per cc
- Flat Milling: .0055' per cc
- Angle Machining: N/A
- Stud Girdle: N/A
- Rocker Arms: Shaft System with 85/125 Spacing (Check Heads for Intake Offset) - T&D 2223
- Lifters: .180' Offset Right (8 required) and .180' Offset Left (8 required)
- Pistons: Special 13.5° with -12 Spark Plug Angle (#1 Cylinder)
- Pushrods: Special Length
- Intake Face Angle: 5°
- Exhaust Pattern: Symmetrical Exhaust Port
- Valve Centerline: 85/125
- Spring Pockets: 1.550' Out of the Box, May be cut to 1.625' - No larger or deeper
- Accessory Bolt Holes are Drilled
- Recommended Intake Manifold: Brodix BM 100 (p/n 158-BM100), BM 102 (p/n 158-BM102) with Valley Tray Required
Part TypeCylinder Head
BrandBRODIX
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number1208100
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
