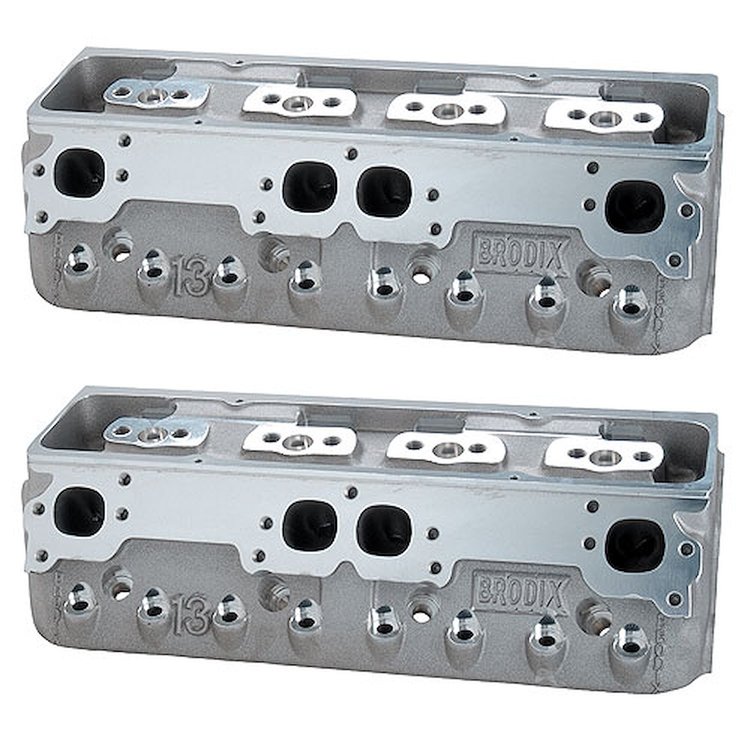

-13 Series Cylinder Heads
• As-Cast Intake Ports
• As-Cast Combustion Chambers
• 2.180'' Intake / 1.625'' Exhaust Valve Sizes
• Angle Plug
• Bare, 2/pkg.



  This head is sold as an unassembled bare casting. It will require professional porting of the runners and combustion chambers. It is finished machined on deck surfaces, inatke/exhaust flanges, etc. and includes valve guides and valve seats installed. This head does NOT include studs, valves, springs retainers or locks.

  Cylinder Head Specifications
• Intake Port Volume: As-Cast (No Porting)
• Combustion Chamber Volume: As-Cast
• Valve Sizes: 2.180' Intake / 1.625' Exhaust ( 11/32' Stem Diameter )
• Spark Plug Configuration: Angled
  Facts and Related Components
• Torque Heads: 70 ft-lb.
• Torque Rocker Studs: 40-45 ft-lb.
• Intake Gasket: Brodix p/n 158-MG1600 (Trim to fit), Mr.Gasket p/n 720-143
• Head Gasket: Fel-Pro p/n 375-1003 (350ci) / 375-1004 (400ci) or Cometic p/n 245-C5399 (350ci) / 245-C5403 (400ci)
• Exhaust Gasket: Fel-Pro p/n 375-1407
• Head Studs: Brodix SK HSSB 13 (Aluminum Block)
• Spark Plug Specs: 14mm Thread, .750' (3/4') Reach, Gasket Seat
• Valve Angle: 13°
• Angle Milling: .0065' per cc
• Flat Milling: .0055' per cc
• Pushrod Slots: 85/134
• Stud Girdle: N/A
• Rocker Arms: Shaft System with 85/134 Spacing (Check heads for intake offset) - T&D 2126, Jesel KPS 41942
• Lifters: .180' Offset
• Pistons: Special 13°
• Pushrods: Special Length
• Intake Face Angle: 5°
• Exhaust Pattern: Standard and Stahl
• Valve Centerline: 85/134
• Spring Pockets: 1.550' Out of the Box, May be cut to 1.625' - No larger or deeper
• Accessory Bolt Holes are Drilled
• Recommended Intake Manifold: Brodix HV 1300 (p/n 158-HV1300) / HV 1301 (p/n 158-HV1301); Edelbrock Victor 18° 2.9 Intake Manifold (p/n 350-2955) / Victor 18° 3.2 Intake Manifold (p/n 350-2958)

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
