Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

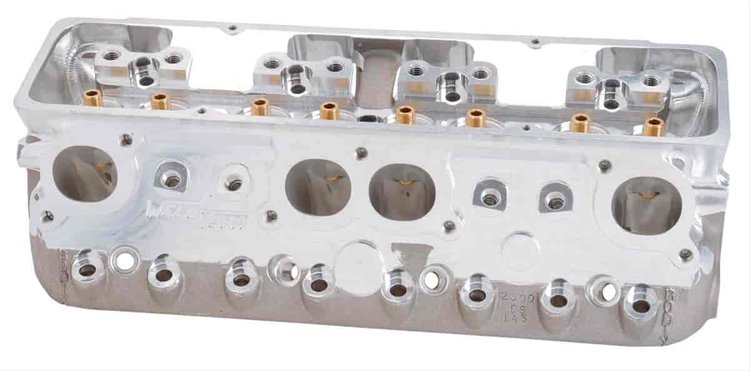

-15 Series Cylinder HeadsStandard Exhaust Ports
- -15 Series Cylinder Heads
- Std Exhaust Port
- 267cc Intake Ports
- 51cc Combustion Chambers
- 2.180'' Intake (TI) / 1.625'' Exhaust (ST) Valves
- 1.550'' Dia. Springs - 240# Seat Pressure
- Titanium Retainers
- Angle Plug
- Assembled, 2/pkg.
Cylinder Head Specifications - Intake Port Volume: 267cc
- Combustion Chamber Volume: 51cc
- Valves: 2.180' dia. x 5.850' o.a.l. Intake (Titanium) / 1.625' dia. x 5.850' o.a.l. Exhaust (Steel) ( 11/32' Stem Diameter )
- Valve Springs: 1.550' Diameter - Open Pressure: 550 lbs.; Closed Pressure: 240 lbs.; Installed Height: 1.950'; Max Lift: .700'
- Spring Retainers: 1.550' 10° Titanium
- Valve Seals: 11/32'
- Spark Plug Configuration: AngledFacts and Related Components
- Torque Heads: 70 ft-lb.
- Torque Rocker Studs: 40-45 ft-lb.
- Intake Gasket: Brodix p/n 158-MG1550
- Head Gasket: Fel-Pro p/n 375-1003 (350ci) / 375-1004 (400ci) or Cometic p/n 245-C5399 (350ci) / 245-C5403 (400ci)
- Exhaust Gasket: Brodix p/n 158-MG1506 (Standard Port)
- Head Studs: Brodix SK HS 15C/18C AP (Brodix Aluminum Block)
- Spark Plug Specs: 14mm Thread, .750' (3/4') Reach, Gasket Seat
- Valve Angle: 15°
- Angle Milling: .0065' per cc
- Flat Milling: .0055' per cc
- Pushrod Slots: 58/107
- Stud Girdle: N/A
- Rocker Arms: Shaft System with 58/107 Spacing (Check heads for intake offset) - T&D 2239, Jesel KPS 306114, Crower 7417F
- Lifters: .180' Offset
- Pistons: Special 15°
- Pushrods: Special Length
- Intake Face Angle: 5°
- Exhaust Pattern: Stahl
- Valve Centerline: 58/107
- Spring Pockets: 1.550' Out of the Box - No larger or deeper
- Accessory Bolt Holes are Drilled
- Recommended Intake Manifold: Brodix HV 1500 (p/n 158-HV1500) / HV 1501 (p/n 158-HV1501)
Part TypeCylinder Head
BrandBRODIX
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number1258101
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
