Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

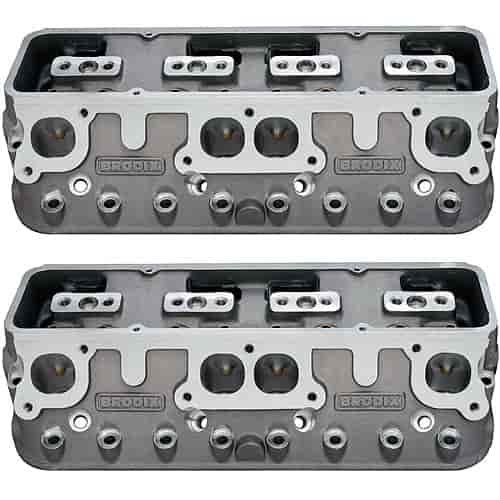

13° 4.500 Bore Spacing Series Cylinder Heads
- 13° 4.500 Bore Spacing Series Cylinder Heads
- Finished & CNC Ported
- 290cc Intake Ports
- 49cc Combustion Chambers
- 2.200'' Intake / 1.600'' Exhaust Valve Sizes
- Angle Plug
- Bare, 2/pkg.
This head is sold as an unassembled bare casting. It is finished machined and includes valve guides and valve seats installed. This head does NOT include studs, valves, springs retainers or locks.
Cylinder Head Specifications - Intake Port Volume: 290cc
- Combustion Chamber Volume: 49cc
- Valve Sizes: 2.200' Intake Size / 1.600' Exhaust Size
- Spark Plug Configuration: AngledFacts and Related Components
- Torque Heads: 70 ft-lb.
- Torque Rocker Studs: 40-45 ft-lb.
- Intake Gasket: Custom Hand Fabricated
- Head Gasket: Fel-Pro p/n 375-26476
- Exhaust Gasket: Custom Hand Fabricated
- Valve Cover Gasket: Cometic p/n 245-VC261188ML
- Head Studs: Brodix SK HSSB 13/45
- Spark Plug Specs: 14mm Thread, .750' (3/4') Reach, Gasket Seat
- Valve Angle: 13°
- Angle Milling: .0065' per cc
- Flat Milling: .0055' per cc
- Pushrod Slots: Cut
- Stud Girdle: N/A
- Rocker Arms: Jesel or T&D Shaft System
- Lifters: .180' Offset
- Pushrods: Special Length
- Pistons: Special 13°
- Exhaust Pattern: Stahl
- Valve Centerline: 88/184
- Spring Pockets: 1.550' out of the box, May be cut to 1.625' - No larger or deeper
- Accessory Bolt Holes are Drilled
- Intake Face Angle: Brodix 5°
- Recommended Intake Manifold: Edelbrock p/n 350-2845 for Standard Deck; Edelbrock p/n 350-28458 for Tall Deck
Part TypeCylinder Head
BrandBRODIX
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number1458001
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
