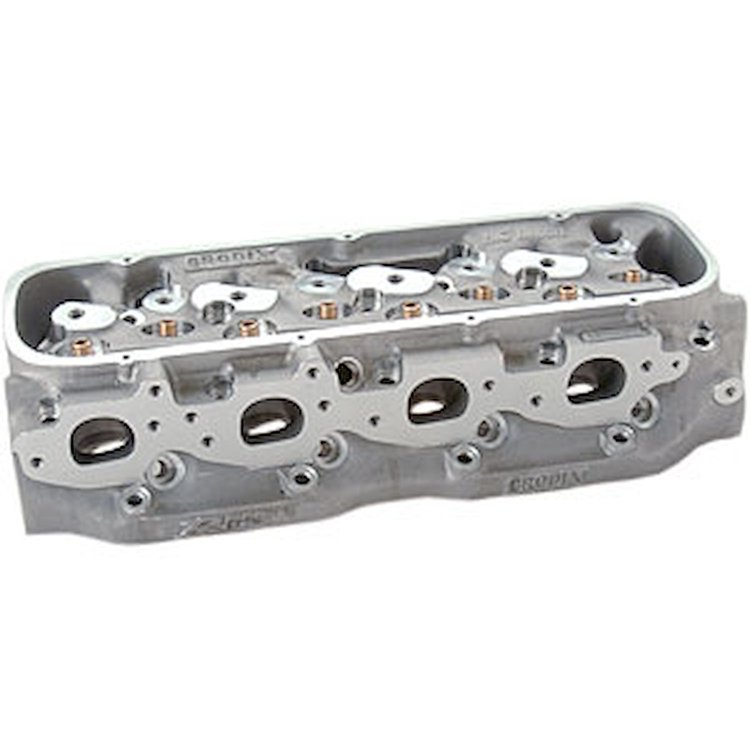

Race-Rite RR BB-R Series Cylinder Head
• 294cc Rectangle Intake Ports
• 119cc Combustion Chambers
• 2.250'' Intake / 1.880'' Exhaust Valve Sizes
• Bare, 1/pkg.



  This head is sold as an unassembled bare casting. It is finished machined and includes valve guides and valve seats installed. This head does NOT include rocker studs, valves, springs, retainers or locks.

  Cylinder Head Specifications
• Intake Port Volume: 294cc - Rectangle Port
• Combustion Chamber Volume: 119cc
• Valve Sizes: 2.250' Intake / 1.880' Exhaust ( 11/32' Stem Diameter )
• Spark Plug Configuration: Angled
  Facts and Related Components
• Torque Heads: 70 ft-lb.
• Torque Rocker Studs: 40-45 ft-lb.
• Intake Gasket: Fel-Pro p/n 375-1211
• Head Gasket: 4.310' Bore - Fel-Pro p/n 375-1027, Cometic p/n 245-C5432; 4.540' Bore - Fel-Pro p/n 375-1017, Cometic p/n 245-C5433
• Exhaust Gasket: Fel-Pro p/n 375-1411 or Cometic p/n 245-C5429
• Head Bolts: ARP p/n 070-135-3601
• Head Studs: ARP p/n 070-135-4001 (6-point)
• Spark Plug Specs: 14mm Thread, .750' (3/4') Reach, Gasket Seat
• Valve Angle: 26° and 4° Intake, 17° and 4° Exhaust
• Angle Milling: .0066' per cc
• Flat Milling: .0050' per cc
• Pushrod Slots: Standard
• Pushrods: Check pushrod clearance with head installed on the engine block before final assembly
• Stud Girdle: Standard
• Rocker Arms: Standard
• Lifters: Standard
• Pistons: Standard
• Exhaust Pattern: Standard
• Valve Centerline: Standard
• Spring Pockets: May be step cut to 1.625'
• Accessory Bolt Holes are Drilled
• Recommended Intake Manifold: Brodix HV 2000 (p/n 158-HV2000) / HV 2001 (p/n 158-HV2001) / HV 2016 (p/n 158-HV2016)

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
