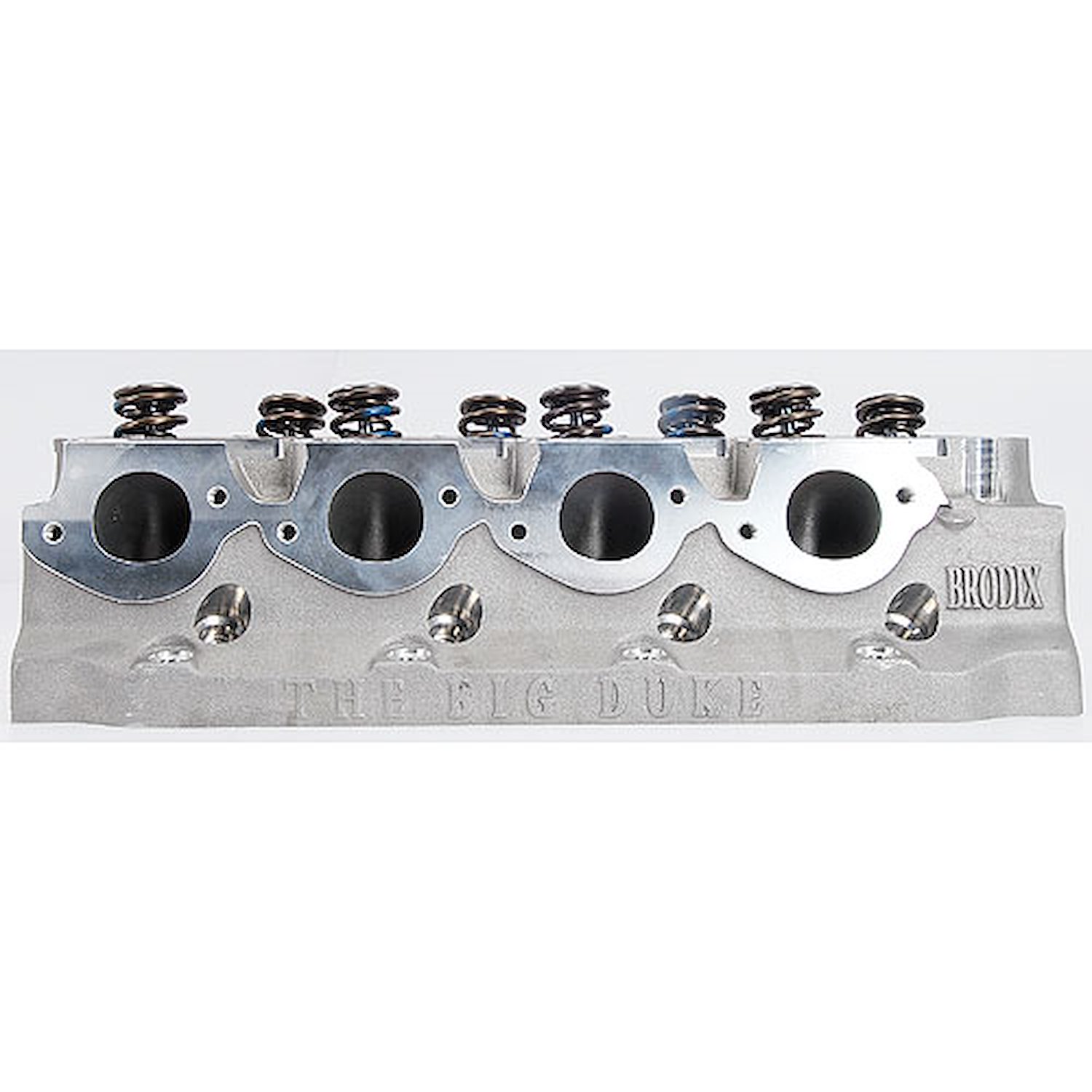

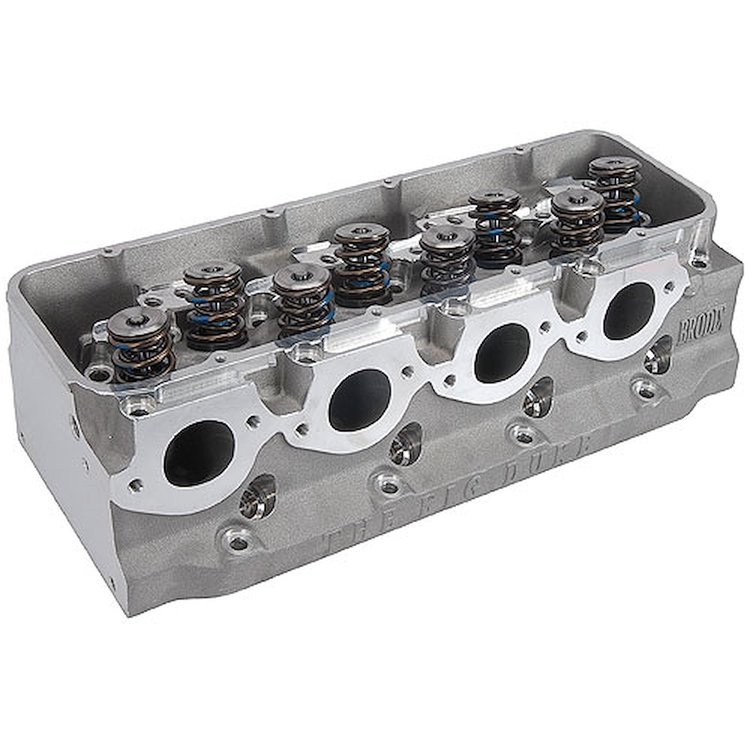

Sweet 16 BP PB 1600 Series Cylinder Head
• CNC Ported
• 416cc Oval Intake Ports
• 93cc Combustion Chambers
• 2.450'' Intake / 1.860'' Exhaust Titanium Valves
• 1.645'' Dia. Springs - 330# Seat Pressure
• Titanium Retainers
• Assembled, 1/pkg.


  Cylinder Head Specifications
• Intake Port Volume: 416cc - Oval Port
• Combustion Chamber Volume: 93cc
• Valves: 2.450' dia. x 6.650' o.a.l. Titanium Intake (55° Valve Seat Angle) / 1.860' dia. x 6.550' o.a.l. Titanium Exhaust (55° Valve Seat Angle) ( 11/32' Stem Diameter )
• Valve Springs: 1.645' Diameter - Open Pressure: 945 lbs.; Closed Pressure: 330 lbs.; Installed Height: 2.100'; Max Lift: .875'
• Spring Retainers: 1.645' 10° Titanium
• Rocker Studs: Shaft System Required
• Guide Plates: N/A
• Valve Seals: 11/32'
• Spark Plug Configuration: Angled
  Facts and Related Components
• Torque Heads: 70 ft-lb.
• Torque Rocker Studs: 40-45 ft-lb.
• Intake Gasket: Brodix MG 2012 (p/n 158-MG2012)
• Head Gasket: 4.540' Bore - Fel-Pro p/n 375-1017, Cometic p/n 245-C5433; 4.600' Bore - Fel-Pro p/n 375-1057, Cometic p/n 245-C5434
• Exhaust Gasket: Fel-Pro p/n 375-1412 or Cometic p/n 245-C5418
• Head Studs: ARP p/n 070-235-4712 (12-point)
• Spark Plug Specs: 14mm Thread, .750' (3/4') Reach, Gasket Seat
• Valve Angle: 16° and 4° Intake, 9° and 4° Exhaust
• Angle Milling: N/A
• Flat Milling: .0055' per cc
• Pushrod Slots: Standard
• Pushrods: Check pushrod clearance with head installed on the engine block before final assembly
• Rocker Arms: Shaft Mounted System - T&D 3038, Jesel KPS 330137
• Lifters: Standard
• Pistons: 16° x 9° Valve Piston
• Spring Pockets: May not be cut any larger or deeper than 1.750'
• Accessory Bolt Holes are Drilled
• Recommended Intake Manifold: Brodix PM 1803 (p/n 158-PM1803) / PM 1813 (p/n 158-PM1813) / PM 1903 (p/n 158-PM1903) / PM 1913 (p/n 158-PM1913)

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
