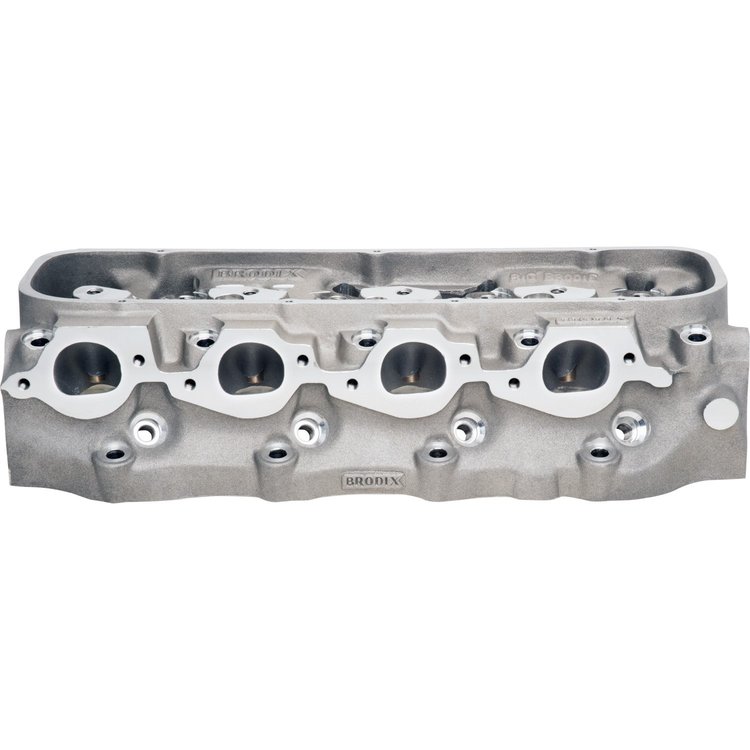

Dragon Slayer DS 365 Big Block Chevy Cylinder Head
InfoVehicle Info Needed
BRODIXPART NUMBER: 158-2320001

Dragon Slayer DS 365 Big Block Chevy Cylinder Head

$94799
2 left in stock
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Items You Need

Thread Sealant 1/2 oz Tube

JEGS

Thread Sealant 1/2 oz Tube

Part Number : 555-28011
$539$5.99
You Save$0.60
Steel Core Valve Cover Gaskets Big Block Chevy

JEGS

Steel Core Valve Cover Gaskets Big Block Chevy

Part Number : 555-21110
$2799$30.99
You Save$3.00
1/2 in. Drive Torque Wrench [10 to 150 ft. lbs.]

JEGS

1/2 in. Drive Torque Wrench [10 to 150 ft. lbs.]

Part Number : 555-M200DB
$5239$56.99
You Save$4.60
Engine Assembly Lube [4 oz. Bottle]

JEGS

Engine Assembly Lube [4 oz. Bottle]

Part Number : 555-28000
$599$6.99
You Save$1.00

Dragon Slayer DS 365 Series Cylinder Heads
  • 365cc Intake Port Volume
  • Unassembled, Bare Head
  • Dragon Slayer DS 365 Series Cylinder Head
  • 365cc Rectangle Intake Ports
  • 119cc Combustion Chambers
  • 2.300" Intake / 1.880" Exhaust Valve Sizes
  • Bare, 1/pkg.

    This head is sold as an unassembled bare casting. It is finished machined and includes valve guides and valve seats installed. This head does NOT include rocker studs, valves, springs, retainers or locks.

    Cylinder Head Specifications

    • Intake Port Volume: 365cc - Rectangle Port
    • Combustion Chamber Volume: 119cc
    • Valve Sizes: 2.300' Intake / 1.880' Exhaust ( 11/32' Stem Diameter )
    • Spark Plug Configuration: Angled



    Facts and Related Components

    • Torque Heads: 70 ft-lb.
    • Torque Rocker Studs: 40-45 ft-lb.
    • Intake Gasket: Brodix p/n 158-MG2001, Cometic p/n 245-C5428, Fel-Pro p/n 375-1252-3
    • Head Gasket: 4.310' Bore - Fel-Pro p/n 375-1027, Cometic p/n 245-C5432; 4.540' Bore - Fel-Pro p/n 375-1017, Cometic p/n 245-C5433
    • Exhaust Gasket: Fel-Pro p/n 375-1411 or Cometic p/n 245-C5429
    • Head Bolts: ARP p/n 070-135-3606, Manley p/n 660-42192 Bolts / 42102 Washers
    • Head Studs: ARP p/n 070-235-4702 (12-point)
    • Spark Plug Specs: 14mm Thread, .750' (3/4') Reach, Gasket Seat
    • Valve Angle: 26° and 4° Intake, 17° and 4° Exhaust
    • Angle Milling: .0066' per cc
    • Flat Milling: .0050' per cc
    • Pushrod Slots: Standard
    • Pushrods: Check pushrod clearance with head installed on the engine block before final assembly
    • Stud Girdle: Standard BB-Chevy, Brodix p/n 158-1230
    • Rocker Arms: Standard BB-Chevy
    • Lifters: Standard
    • Pistons: Standard BB-Chevy
    • Valve Centerline: Standard BB-Chevy
    • Exhaust Pattern: Raised .600"
    • Spring Pockets: May not be cut any larger or deeper than 1.625'
    • Accessory Bolt Holes are Drilled
    • Recommended Intake Manifold: Brodix BM 2000 (p/n 158-BM2000) / HV 2001 (p/n 158-HV2001)

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Proven Competition Head That Works with
    Most Standard Big-Block Chevy Components!

    26°/4° Intake & 17°/4° Exhaust Valve Angles

    The new DS 320 and DS 365 Big Block Chevrolet compatible cylinder heads are the latest addition to the Dragon Slayer series. These heads require no porting, making them the most powerful heads in their class. The DS 320 series has a 320cc intake port and flows over 370 cfm and the DS 365 series flows over 392 cfm with only the bowls blended and the intake ports matched to the gasket. Available with a 110cc, 115cc or 119cc combustion chamber.

    Show More

    These cylinder heads accept all standard pistons, intake manifolds, and rocker arms. The exhaust ports are raised .600'' higher than stock. Valve cover rails are now raised to assure no oil leakage. Every casting is poured from A-356 virgin aluminum and tested before Brodix utilizes their in-house processes such as finish machining and heat treating to assure that you receive the best products for your hard-earned money. Other features include a thick deck surface that is compatible with nitrous, drilled and tapped holes on the ends for standard drive accessories, phosphorous bronze valve guides and hardened valve seats installed for unleaded fuel. Sold Individually, 1/pkg.



      VALVE SPRING   Specs
      1.550'' Diameter Valve Spring for Mechanical Roller Lifter Cam
    • Spring Pressure Open: 610 lbs.
    • Spring Pressure Closed: 255 lbs.
    • Installed Height: 1.950''
    • Max Lift: .700''
      1.625'' Diameter Valve Spring for Mechanical Roller Lifter Cam
    • Spring Pressure Open: 745 lbs.
    • Spring Pressure Closed: 250 lbs.
    • Installed Height: 2.050''
    • Max Lift: .800''
      1.645'' Diameter Valve Spring for Mechanical Roller Lifter Cam
    • Spring Pressure Open: 915 lbs.
    • Spring Pressure Closed: 315 lbs.
    • Installed Height: 2.100''
    • Max Lift: .850''



    Part TypeCylinder Head
    Product LineBrodix Big Block Chevy Dragon Slayer Series Aluminum Cylinder Heads
    BrandBRODIX
    Package Height9.0
    Package Width10.25
    Package Length23.63
    Weight41.08 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part Number2320001
    Package Qty1
    Package TypeEA
