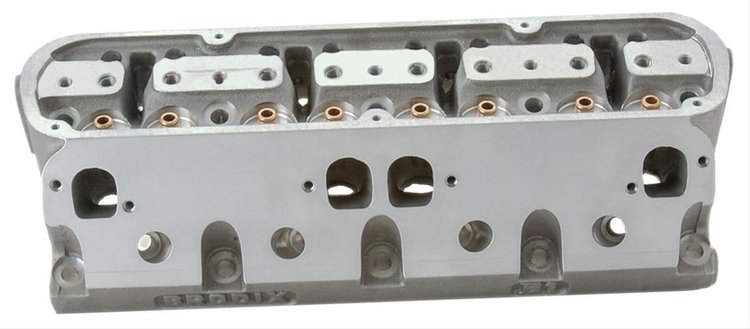

B1 BS Series Cylinder Head 230cc Intake Ports
InfoVehicle Info Needed
BRODIXPART NUMBER: 158-3181003

B1 BS Series Cylinder Head 230cc Intake Ports

$2,09610
ShippingShips on 12/03/2026
Lowest PriceLowest Price Guarantee

Items You Need

H/P Intake Gasket Chrysler 361, 383, 400 V8 Engines

FEL-PRO

H/P Intake Gasket Chrysler 361, 383, 400 V8 Engines

Part Number : 375-1214
$4099
Big Block Chrysler Exhaust Header Gasket Chrysler 361, 383, 400, 413, 426 Wedge, and 440

FEL-PRO

Big Block Chrysler Exhaust Header Gasket Chrysler 361, 383, 400, 413, 426 Wedge, and 440

Part Number : 375-1414
$3299
Steel Wire Ring Head Gasket 1959-78 361 to 440 except Hemi

FEL-PRO

Steel Wire Ring Head Gasket 1959-78 361 to 440 except Hemi

Part Number : 375-1009
$5599
Head Studs with Hex Nuts Big Block Chrysler Mopar 383-440 Wedge with Koffel BTS Full

ARP

Head Studs with Hex Nuts Big Block Chrysler Mopar 383-440 Wedge with Koffel BTS Full

Part Number : 070-145-4012
$18999

B1 BS Series Cylinder Heads
  • 230cc Intake Port Volume
  • 1.550'' Diameter Valve Springs - 550# Open, 240# Closed Spring Pressure
    • B1 BS Series Cylinder Head
    • 230cc Intake Ports
    • 65cc Combustion Chambers
    • 2.200'' Intake / 1.810'' Exhaust Valves
    • 1.550'' Dia. Springs - 240# Seat Pressure
    • Titanium Retainers
    • Assembled, 1/pkg.

      Cylinder Head Specifications
    • Intake Port Volume: 230cc
    • Combustion Chamber Volume: 65cc
    • Valves: 2.200' dia. x 5.290' o.a.l. Intake / 1.810' dia. x 5.300' o.a.l. Exhaust ( 11/32' Stem Diameter )
    • Valve Springs: 1.550' Diameter - Open Pressure: 550 lbs.; Closed Pressure: 240 lbs.; Installed Height: 1.950'; Max Lift: .700'
    • Spring Retainers: 1.550' 10° Titanium
    • Valve Seals: 11/32'

      Facts and Related Components
    • Torque Heads: 70 ft-lb. with 7/16' Studs; 100 ft-lb. with 1/2' Studs
    • Torque Rocker Studs: 30 ft-lb.
    • Intake Gasket: Fel-Pro 1214 (p/n 375-1214) B1 BS series; Fel-Pro 1276 (p/n 375-1276) B1 MO series
    • Head Gasket: Fel-Pro p/n 375-1009
    • Exhaust Gasket: Fel-Pro 1414 (p/n 375-1414)
    • Head Studs: ARP p/n 070-145-4012 (B1 BS); ARP 070-145-4007 (B1 MO)
    • Spark Plug Specs: 14mm Thread, .750' (3/4') Reach, Gasket Seat
    • Valve Angle: 15° Intake and Exhaust
    • Angle Milling: .0065' per cc (B1 BS); .0070' per cc (B1 MO)
    • Flat Milling: .0055' per cc
    • Pushrod Slots: Standard
    • Pushrods: Special Length
    • Rocker Arms: Shaft Mounted System - T&D 8220, Jesel KPS 12364 (B1 BS); T&D 8010, Jesel KPS SP1100 (B1 MO)
    • Lifters: Standard
    • Pistons: Standard Closed Chamber (B1 BS); Special 15° (B1 MO)
    • Spring Pockets: May not be cut any larger or deeper than 1.625'
    • Recommended Intake Manifold: Standard Big Block Chrysler on B1 BS & STS B1 BS Series; B1 Manifold on B1 MO Series
    • Accessory Bolt Holes are Drilled (B1 BS)

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Bolt-On 100+HP Over Cast Iron Heads!
    15° Intake & Exhaust Valve Angles

    The Brodix Big Block Mopar B1 BS Series is available in two different versions, out-of-the-box and 100% CNC ported. These versions offer a 90-120hp gain over their cast iron competitors. The B1 BS Series is the out-of-the-box version that has bowls blended, intake ports matched, and a multi-angle valve job. The STS B1 BS Series is 100% CNC ported version that's completely ported and contoured to assure maximum airflow and velocity. The B1 BS is absolutely the best buy for Mopar racers who would like to replace their cast iron heads and add horsepower. The B1 BS Series use some special parts such as rockers, head studs, and longer pushrods.

    Show MoreThe B1 MO Series is designed for the serious Chrysler ''B'' big block racers and is easily capable of flowing over 400 cfm. The B1 MO Series requires some special parts such as pistons, rocker system, intake manifold, and valve covers. This head uses standard headers and a ''B'' block. A moved centerline (MC) version is also available by special order. All heads in the B1 Series utilize a thick deck that is compatible with nitrous.

    Every casting is poured from A-356 virgin aluminum and tested before Brodix utilizes their in-house processes such as finish machining and heat treating to assure that you receive the best products for your hard-earned money. Other features include a thick deck surface that is compatible with nitrous, drilled and tapped holes on the ends for standard drive accessories, phosphorous bronze valve guides and ductile iron valve seats installed. Sold Individually, 1/pkg.
      VALVE SPRING   Specs
      1.550'' Diameter Valve Spring for Mechanical Flat Tappet Lifter Cam
    • Spring Pressure Open: 550 lbs.
    • Spring Pressure Closed: 240 lbs.
    • Installed Height: 1.950''
    • Max Lift: .700''
      1.625'' Diameter Valve Spring for Mechanical Roller Lifter Cam
    • Spring Pressure Open: 745 lbs.
    • Spring Pressure Closed: 255 lbs.
    • Installed Height: 2.050''
    • Max Lift: .800''
      1.645'' Diameter Valve Spring for Mechanical Roller Lifter Cam
    • Spring Pressure Open: 945 lbs.
    • Spring Pressure Closed: 330 lbs.
    • Installed Height: 2.100''
    • Max Lift: .875''
    Part TypeCylinder Head
    Product LineBrodix Big Block Chrysler B1 Series Aluminum Cylinder Heads
    BrandBRODIX
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part Number3181003
    Package Qty1
    Package TypeEA
