Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

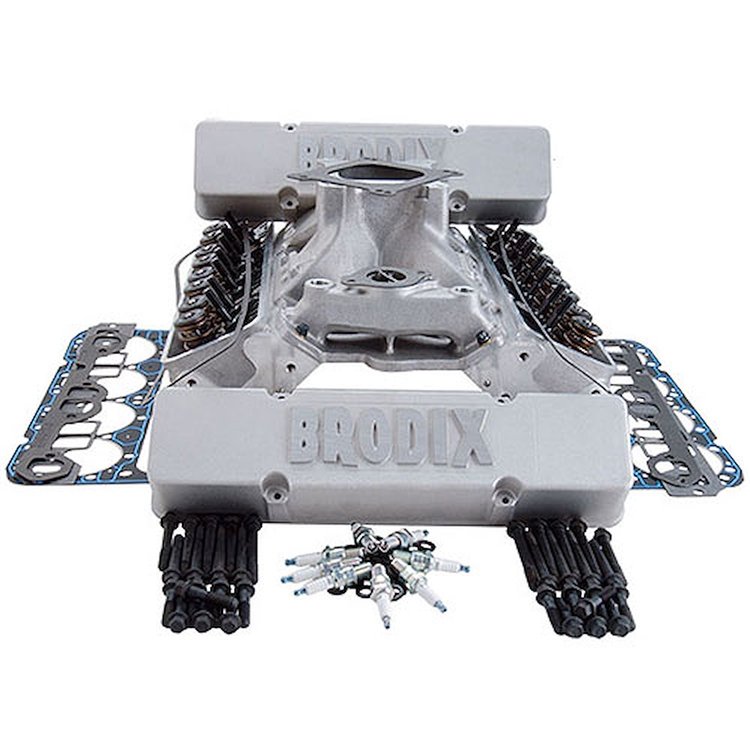

BP IK 200 Series Cylinder Heads70cc Combustion Chambers
- IK 200 Series Top End Kit
- 350ci Small Block Chevy
- 200cc Intake Ports
- 70cc Combustion Chambers
- 2.020'' Intake / 1.600'' Exhaust Valves
- 1.470'' Dia. Springs - 125# Seat Pressure
- Steel Retainers
- Straight Plug
- Assembled Heads
Top End Kits Include: - Complete Cylinder Heads
- HV1016 Dual Plane Intake Manifold (4150 Series Carb)
- Tall Cast Aluminum Valve Covers with Studs and Nuts
- Valve Cover, Intake, Exhaust, Carburetor and Head Gaskets
- Head Bolts with Washers
- Intake Bolts with Washers
- Spark Plugs
- Brodix HatCylinder Head Specifications
- Intake Port Volume: 200cc
- Combustion Chamber Volume: 70cc
- Valves: 2.020' dia. x 4.920' o.a.l. Intake / 1.600' dia. x 4.920' o.a.l. Exhaust ( 11/32' Stem Diameter )
- Valve Springs: 1.470' Diameter - Open Pressure: 325 lbs.; Closed Pressure: 125 lbs.; Installed Height: 1.900'; Max Lift: .575'
- Spring Retainers: 1.430' 7° Steel
- Rocker Studs: 3/8'
- Guide Plates: 5/16'
- Valve Seals: 11/32'
- Spark Plug Configuration: StraightFacts and Related Components
- Torque Heads: 70 ft-lb.
- Torque Rocker Studs: 40-45 ft-lb.
- Intake Gasket: Fel-Pro p/n 375-1206, Cometic p/n 245-C5414
- Head Gasket: Fel-Pro p/n 375-1003 (350ci) or Cometic p/n 245-C5399 (350ci)
- Exhaust Gasket: Fel-Pro p/n 375-1404 or Cometic p/n 245-C5415
- Head Bolts: ARP p/n 070-134-3601 or Manley p/n 660-42313
- Head Bolt Washers: MANLEY p/n 660-42102
- Head Studs: ARP p/n 070-134-4001 (6-point)
- Spark Plug Specs: 14mm Thread, .750' (3/4') Reach, Gasket Seat
- Valve Angle: 23°
- Angle Milling: .0078' per cc
- Flat Milling: .0060' per cc
- Pushrod Slots: Standard
- Stud Girdle: Standard
- Rocker Arms: Standard
- Lifters: Standard
- Exhaust Pattern: Standard
- Valve Centerline: Standard
- Spring Pockets: May not be cut any larger or deeper than 1.550'
- Accessory Bolt Holes are Drilled
- Recommended Intake Manifold: Brodix HP-1 (p/n 158-HP1) / HV 1016 (p/n 158-1016)
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Bolt-on Performance Cylinder Heads with a Budget-Minded Price
Brodix IK Series Cylinder Heads for Small Block Chevy engines feature innovative extreme castings with various intake ports and combustion chamber sizes that allow optimal versatility. With precision components and A-356 aluminum alloy construction, the Brodix aluminum cylinder heads are the best bang-for-your-buck on the market today.
Part TypeTop End Kit
Product LineBrodix Small Block Chevy IK Series Aluminum Cylinder Heads
BrandBRODIX
Package Height17.0
Package Width23.0
Package Length24.0
Weight134.0 PG
Intake Manifold Model (Descriptive)Brodix
Intake Manifold IncludedYes
Retainers IncludedYes
Guideplates IncludedYes
Pushrods IncludedNo
Oiling StyleThrough pushrod
Cylinder Head Bolts IncludedYes
Valve Seats MachinedYes
Heat CrossoverNo
Number Of Springs Per ValveDual
Spark Plug StyleStraight
Cover FinishNatural
Damper Spring IncludedYes
Valve Stem Seals IncludedYes
Valve Guide MaterialPhosphorous bronze
Camshaft IncludedNo
Carburetor FlangeSquare bore
Steam Holes DrilledNo
Rocker Arm Studs IncludedYes
Retainer MaterialChromoly steel
Cnc-Machined Combustion ChamberNo
Lifters IncludedNo
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake MaterialAluminum
Intake StyleSingle plane
Intake Port LocationStandard
Valve Cover MaterialCast aluminum
Intake FinishNatural
Exhaust Valves IncludedYes
Locks IncludedYes
Lock Style7 degree
Gaskets IncludedYes
Rocker Arms IncludedNo
Valve Covers IncludedYes
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seat MaterialDuctile iron
Valve Springs IncludedYes
Fuel Delivery StyleCarbureted
Valve Seat Machine Style3-angle
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedYes
QuantitySold as a kit
Accessory Bolt Holes DrilledYes
Exhaust Port LocationStandard
Combustion Chamber Volume (Cc)64
Machined For O-RingNo
Timing Chain And Gears IncludedNo
Cylinder Head StyleAssembled
Valve Cover Mounting StylePerimeter bolt
Valve Stem Seal StylePositive stop
Intake Runner Volume (Cc)200
Cnc-Machined Exhaust RunnerNo
Vendor Part Number9991010
Package Qty1
Package TypeEA
