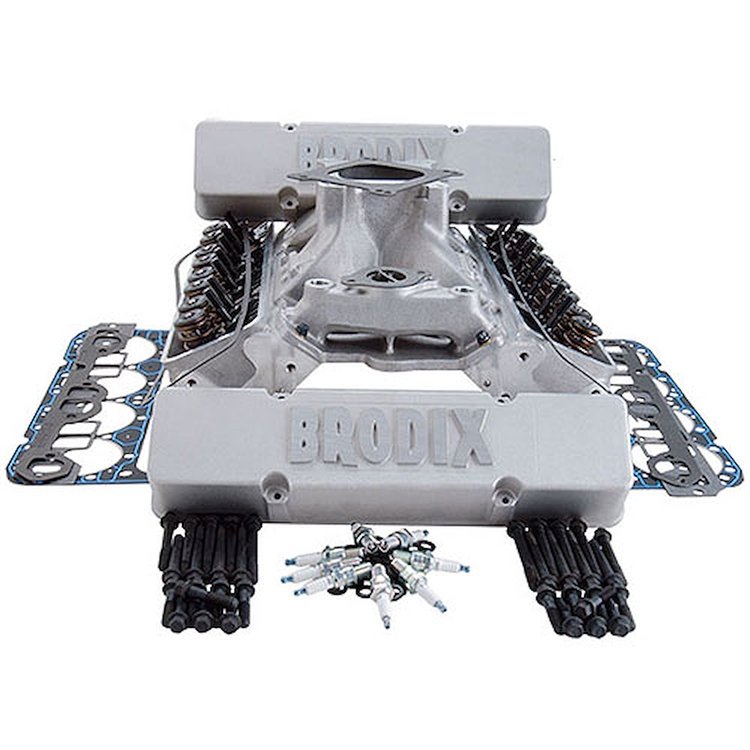

BP IK 210 Series Top End Kit
• 350ci Small Block Chevy
• 210cc Intake Ports
• 75cc Combustion Chambers
• 2.080'' Intake / 1.600'' Exhaust Valves
• 1.470'' Dia. Springs - 125# Seat Pressure
• Steel Retainers
• Straight Plug
• Assembled Heads


  Top End Kits Include:
• Complete Cylinder Heads
• HV1016 Dual Plane Intake Manifold (4150 Series Carb)
• Tall Cast Aluminum Valve Covers with Studs and Nuts
• Valve Cover, Intake, Exhaust, Carburetor and Head Gaskets
• Head Bolts with Washers
• Intake Bolts with Washers
• Spark Plugs
• Brodix Hat
  Cylinder Head Specifications
• Intake Port Volume: 210cc
• Combustion Chamber Volume: 75cc
• Valves: 2.080' dia. x 4.965' o.a.l. Intake / 1.600' dia. x 4.965' o.a.l. Exhaust ( 11/32' Stem Diameter )
• Valve Springs: 1.470' Diameter - Open Pressure: 325 lbs.; Closed Pressure: 125 lbs.; Installed Height: 1.900'; Max Lift: .575'
• Spring Retainers: 1.430' 7° Steel
• Rocker Studs: 7/16'
• Guide Plates: 5/16'
• Valve Seals: 11/32'
• Spark Plug Configuration: Straight
  Facts and Related Components
• Torque Heads: 70 ft-lb.
• Torque Rocker Studs: 40-45 ft-lb.
• Intake Gasket: Fel-Pro p/n 375-1205
• Head Gasket: Fel-Pro p/n 375-1003 (350ci) or Cometic p/n 245-C5399 (350ci)
• Exhaust Gasket: Fel-Pro p/n 375-1406 or Cometic p/n 245-C5415
• Head Bolts: ARP p/n 070-134-3601 or Manley p/n 660-42313
• Head Bolt Washers: MANLEY p/n 660-42102
• Head Studs: ARP p/n 070-134-4001 (6-point)
• Spark Plug Specs: 14mm Thread, .750' (3/4') Reach, Gasket Seat
• Valve Angle: 23°
• Angle Milling: .0078' per cc
• Flat Milling: .0060' per cc
• Pushrod Slots: Standard
• Stud Girdle: Standard
• Rocker Arms: Standard
• Lifters: Standard
• Exhaust Pattern: Standard
• Valve Centerline: Standard
• Spring Pockets: May not be cut any larger or deeper than 1.550'
• Accessory Bolt Holes are Drilled
• Recommended Intake Manifold: Brodix HV 1014 (p/n 158-1014) / HV 1016 (p/n 158-1016)

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
