Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

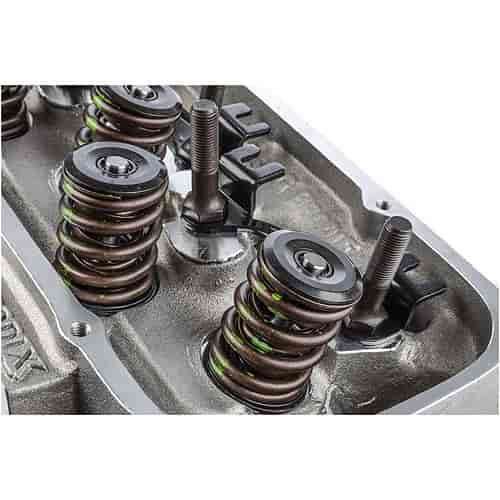

BP BB-3 XTRA 366 Series Cylinder Heads
- BP BB-3 XTRA Series Top End Kit
- CNC Ported
- 366cc Rectangle Intake Ports
- 119cc Combustion Chambers
- 2.300'' Intake / 1.880'' Exhaust Valves
- 1.625'' Dia. Springs - 255# Seat Pressure
- Titanium Retainers
- Assembled Heads
Big Block Chevy Top End Kits Include: - Complete Cylinder Heads
- Intake Manifold (4150 Series)
- Tall Cast Aluminum Valve Covers with Studs and Nuts
- Valve Cover, Intake, Exhaust, Carburetor and Head Gaskets
- Head Bolts with Washers
- Intake Bolts with Washers
- Spark Plugs
- Brodix HatCylinder Head Specifications
- Intake Port Volume: 366cc - Rectangle Port
- Combustion Chamber Volume: 119cc
- Valves: 2.300' dia. x 5.568' o.a.l. Intake / 1.880' dia. x 5.494' o.a.l. Exhaust ( 11/32' Stem Diameter )
- Valve Springs: 1.625' Diameter - Open Pressure: 745 lbs.; Closed Pressure: 255 lbs.; Installed Height: 2.050'; Max Lift: .800'
- Spring Retainers: 1.625' 10° Titanium
- Rocker Studs: 7/16'
- Guide Plates: 3/8'
- Valve Seals: 11/32'
- Spark Plug Configuration: AngledFacts and Related Components
- Torque Heads: 70 ft-lb.
- Torque Rocker Studs: 40-45 ft-lb.
- Intake Gasket: Brodix p/n 158-MG2001, Fel-Pro p/n 375-1252-3, Cometic p/n 245-C5428
- Head Gasket: 4.540' Bore - Fel-Pro p/n 375-1017, Cometic p/n 245-C5433; 4.600' Bore - Fel-Pro p/n 375-1057, Cometic p/n 245-C5434
- Exhaust Gasket: Fel-Pro p/n 375-1411 or Cometic p/n 245-C5429
- Head Bolts: ARP p/n 070-135-3606, Manley p/n 660-42192
- Head Studs: ARP p/n 070-235-4702 (12-point)
- Spark Plug Specs: 14mm Thread, .750' (3/4') Reach, Gasket Seat
- Valve Angle: 24° and 4° Intake, 15° and 4° Exhaust
- Angle Milling: .0066' per cc
- Flat Milling: .0050' per cc
- Pushrod Slots: Standard
- Pushrods: Check pushrod clearance with head installed on the engine block before final assembly
- Stud Girdle: Standard, Brodix p/n 158-1230
- Rocker Arms: Standard
- Lifters: Standard
- Pistons: 2° Valve Rolled Piston
- Exhaust Pattern: Raised .600'
- Spring Pockets: May not be cut any larger or deeper than 1.625'
- Accessory Bolt Holes are Drilled
Part TypeTop End Kit
BrandBRODIX
Part CategoryPerformance Parts
Vendor Part Number9992007-3
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
