Note: This radiator does NOT feature a built-in transmission oil cooler.

Inlet / Outlet Specs:

• Inlet Location: Upper Passenger Side
• Inlet Size: 1.25 Inch
• Outlet Location: Lower Passenger Side
• Outlet Size: 1.50 Inch
• Number of Passes: 2
• Radiator Material: Aluminum
• Radiator Finish: Natural
• Radiator Cap: Yes
• LS Steam Line Port: Yes
• Transmission Cooler Y/N: No
• Engine Oil Cooler: No
• Power Steering Cooler: No
• Tube Size: Single 55mm Core with Twelve Individual 4mm Wide Tubes
• Fan Quantity: 1
• Blade Material: Plastic
• Blade Color: Black
• Shroud Material: Plastic
• Shroud Color: Black
• Fan Diameter(in): 11 Inch
• Fan Included: Yes
• Row Quanity: 12

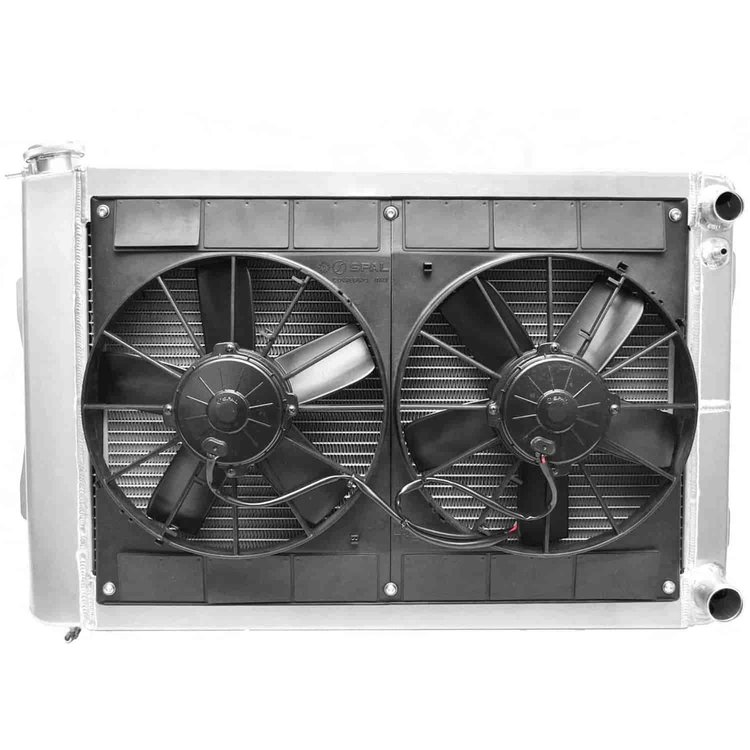

If you are adding an LS engine to your 1967-1969 Camaro/Firebird. Keep it cool with C&R Racing certified LS Series radiator modules. These cooling modules are designed to keep your LS engine cool and operating properly. This clean looking and simple installation system features built-in steam ports, a billet aluminum 21-psi radiator cap, plus this first generation radiator comes with factory rubber mount inserts. They are designed around Spal's dual 11-inch cooling fan shroud module. Rather than using add-on brackets C&R Racing uses 1/4" nut plates that are part of the radiators for a stronger, better looking component. These fans are what you need especially when using A/C. Due to the size this radiator may require new mounting holes in your core support.
