Note: This radiator features a built-in transmission oil cooler.

Inlet / Outlet Specs:

• Inlet Location: Upper Passenger Side
• Inlet Size: 1.25 Inch
• Outlet Location: Lower Passenger Side
• Outlet Size: 1.50 Inch
• Number of Passes: 2
• Radiator Material: Aluminum
• Radiator Finish: Natural
• Radiator Cap: Yes
• LS Steam Line Port: Yes
• Transmission Cooler Y/N: Yes
• Engine Oil Cooler: No
• Power Steering Cooler: No
• Tube Size: Single 55mm Core with Twelve Individual 4mm Wide Tubes
• Fan Quantity: 1
• Blade Material: Plastic
• Blade Color: Black
• Shroud Material: Plastic
• Shroud Color: Black
• Fan Diameter(in): 11 Inch
• Fan Included: Yes
• Row Quanity: 12

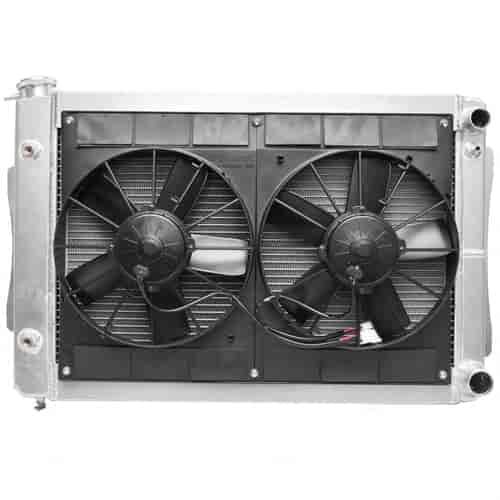

If you are adding an LS engine to your 1967-1969 Camaro/Firebird. Keep it cool with C&R Racing certified LS Series radiator modules. These cooling modules with transmission oil cooler and fittings are designed to keep your LS engine cool and operating properly. This clean looking and simple installation system features built-in steam ports, a billet aluminum 21-psi radiator cap, plus this first generation radiator comes with factory rubber mount inserts. They are designed around Spal's dual 11-inch cooling fan shroud module. Rather than using add-on brackets C&R Racing uses 1/4" nut plates that are part of the radiators for a stronger, better looking component. These fans are what you need especially when using A/C. Due to the size this radiator may require new mounting holes in your core support.
