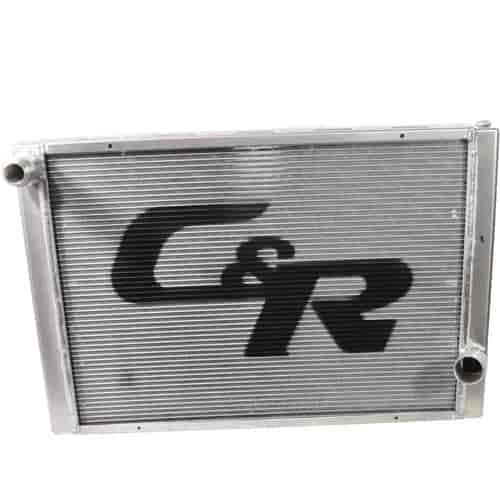

C&R Racing Lightweight Late Model Racing Radiators are designed with the Late Model Dirt and Pavement racer in mind providing up to an 8 pound reduction in wet weight. Using furnaced brazed core construction, no epoxy, allow these radiators to withstand greater pressures than larger 2-row cores and the same physical dimensions as Universal Racing Radiators allows easy installation without the need to change mounts, ductwork, shrouds or plumbing!

Features:

• Lighter Yet Outperforms Conventional Two Row Cores
• Capable of Cooling 1000+ HP
• Open System Radiators have a Billet Waterneck that accepts Standard Radiator Cap
• Closed System Radiators require an engine mounted or remote filler neck with external plumbing or
  the use of an external pressure system
• Billet Female Inlet accepts a -20AN Port Adapter Fitting*
• 1-3/4'' Lower Hose Outlet
• Low Outlet is for most applications
• High Outlet is for additional frame clearance
• Available in Single or Double Pass Configurations
• Rigid Tanks, Upper and Lower Rails are suitable for mounting fans, shrouds and brackets

  *Note: Upper Radiator Hose Adapter (-20AN Port Adapter Fitting) is required for installation and sold separately below!
