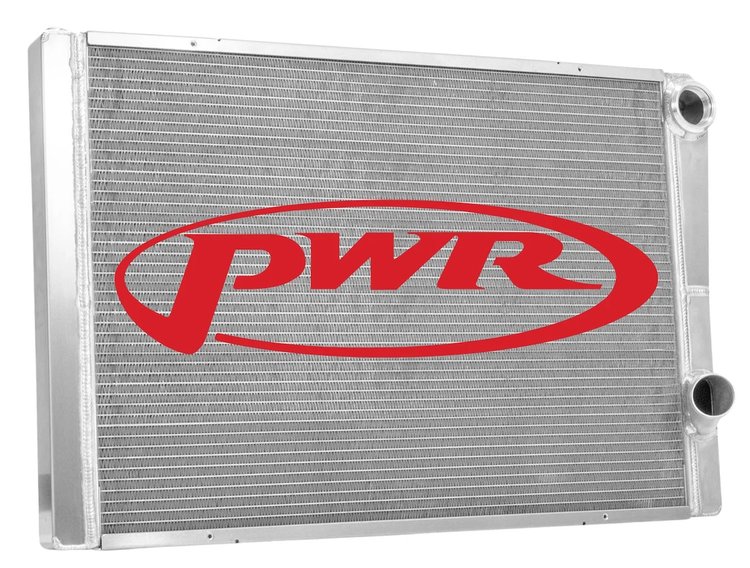

Vehicle Info Needed904-28191 Universal Double-Pass Performance Aluminum Radiator, Closed System, 28 in. x 19 in., -20 AN Port Inlet, 1-3/4 in. Hose
Ships on 09/18/2026
Lowest Price Guarantee904-28191 Features:
Universal radiators are excellent, general-purpose radiators capable of cooling many applications depending on the vehicle and use. This universal radiator comes standard with a 42 mm thick core utilizing rolled dimpled tubes with engineered V-shape fin with a double pass configuration closed system. The inlet comes with a -20 AN universal port bung, so you can select the inlet size of your choice, and the outlet comes standard with a 1-3/4 in. hose barb fitting in a high mounting position. Mounting provisions for SPAL fans and aluminum shrouds are included.
- Radiator Style: Crossflow
- Number of Passes: Double
- Inlet Location: Upper Passenger
- Inlet Size: -20 AN Universal Port Bung
- Outlet Location: Lower Passenger
- Outlet Size: 1.75 Inch
- Tube Size: 42 mm
- Upper Fittings and Radiator Cap Sold Separately
Radiators and Radiator Packages with the Capability to Cool Extreme Horsepower
C&R Racing Universal Racing Radiators are TIG welded by experienced racing fabricators from aluminum using premium furnace brazed cores to produce the most durable lightweight, high-efficiency radiators on the market.
