Vehicle Info NeededCANTON RACING PRODUCTSPART NUMBER: 074-11-102T

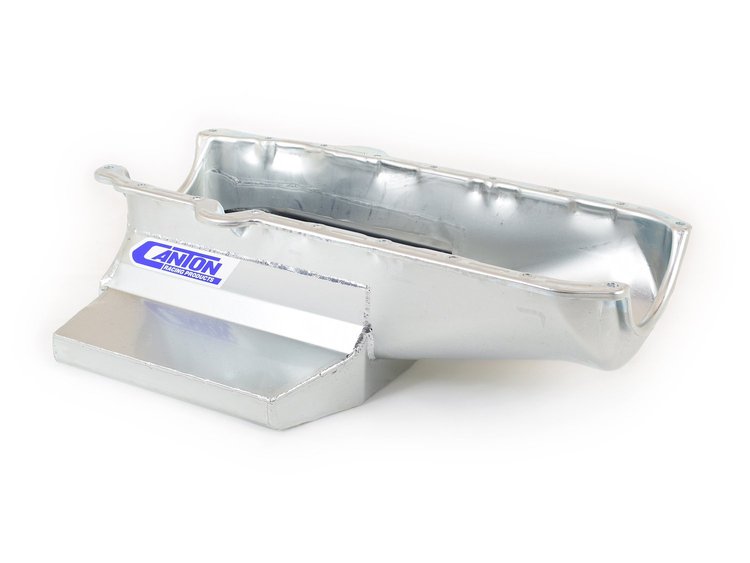

11-102T Circle Track Oil Pan 1986-Up Small Block Chevy Blocks (1-piece Rear Seal)
$51500
Ships on 09/15/2026
Lowest Price GuaranteeSmall Block Chevy Oil Pans
- Circle Track Oil Pan
- 1986-Up Small Block Chevy Blocks
(1-piece Rear Seal) - Competition Series
- 7 Quarts
This Competition wet sump is for 1986 and newer Small Block Chevy with one-piece seal. It is designed for applications where the engine is set extra low in the chassis. Fits front steer chassis with both aftermarket and Camaro front ends. The pan has a 6-1/2" deep, 15" wide, 12" long sump, and a 7-quart system capacity. Requires pickup.Pan Features - Six Trap Door Baffles & Three Runners
- Crank Scraper
- Bolt-in Slosh Baffle
- Built-in Windage Tray
- 1/2" NPT Temperature Bung
- Provision for Pan Mounted Dipstick
- Magnetic Drain Plug
Part TypeOil Pan
BrandCANTON RACING PRODUCTS
Package Height9.5
Package Width16.25
Package Length24.5
Weight20.0 PG
Part CategoryPerformance Parts
Dipstick PortYes
UsageCompetition
Hardware IncludedNo
BaffledYes
Pickup IncludedNo
Gasket Or Seal IncludedNo
MaterialSteel
Drain Plug IncludedYes
Engine Make/SizeChevy Small Block (262-400)
Capacity7 Quart System Capacity
Crank Scraper IncludedYes
Windage Tray IncludedYes
Part FitmentSemi Universal
Kicked OutYes
FinishSilver Plating
Vendor Part Number11-102T
Package Qty1
Package TypeEA
