Product Discontinued
CANTON RACING PRODUCTSPART NUMBER: 074-11-120T

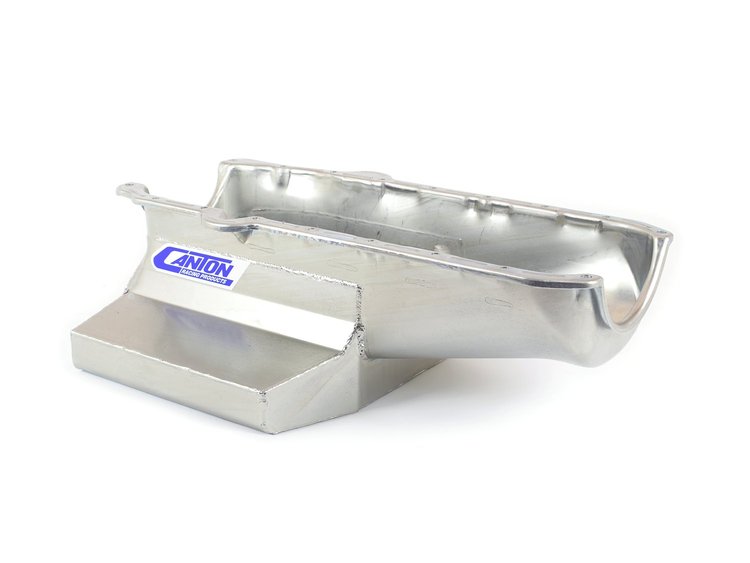

Circle Track Oil Pan 1986-Up Small Block Chevy Blocks (1-piece Rear Seal)
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Small Block Chevy Oil Pans
- Circle Track Oil Pan
- 1986-Up Small Block Chevy Blocks
(1-piece Rear Seal) - Competition Series
- 8 Quarts
This Competition wet sump is for 1986 and newer Small Block Chevy with one-piece seal. Fits front steer chassis with both aftermarket and Camaro front ends, others when the engine is moved. It has a 7" deep, 15" wide, 12" long sump, and an 8-quart system capacity. Will work with all starter and flywheel combinations. Requires pickup.Pan Features - Six Trap Door Baffles & Three Runners
- Crank Scraper
- Bolt-in Slosh Baffle
- Built-in Windage Tray
- 1/2" NPT Temperature Bung
- Provision for Pan Mounted Dipstick
- Magnetic Drain Plug
Part TypeOil Pan
BrandCANTON RACING PRODUCTS
Package Height9.5
Package Width16.25
Package Length24.5
Weight20.0 PG
Part CategoryPerformance Parts
Dipstick PortYes
UsageCompetition
Hardware IncludedNo
BaffledYes
Pickup IncludedNo
Gasket Or Seal IncludedNo
Material16 Gauge Steel
Drain Plug IncludedYes
Engine Make/SizeChevy Small Block (262-400)
Capacity8 Quart System Capacity
Crank Scraper IncludedYes
Windage Tray IncludedYes
Part FitmentSemi Universal
Kicked OutYes
FinishSilver Plating
Vendor Part Number11-120T
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
