Vehicle Info NeededCANTON RACING PRODUCTSPART NUMBER: 074-11-180T

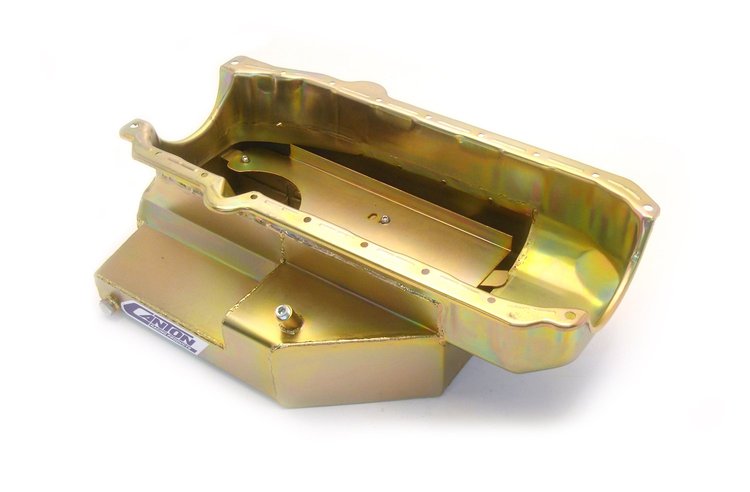

11-180T Circle Track Oil Pan 1986-Up Small Block Chevy Blocks
$52800
Ships on 09/21/2026
Lowest Price GuaranteeSmall Block Chevy Oil Pans
- Circle Track Oil Pan
- 1986-Up Small Block Chevy Blocks
- Competition Series, Open Chassis
- 9 Quarts
This Competition open chassis wet sump is for 1986 and newer Small Block Chevy. It is designed for a chassis without a crossmember under the engine (asphalt and dirt modifieds, sprint cars, and some late models). It has a 11-1/2" wide, 16" long, 7" deep "L" sump, and a 9-quart system capacity. Requires pickup.Pan Features - Six Trap Door Baffles & Directional Oil Runners
- Crank Scraper
- Bolt-in Slosh Baffle
- Built-in Screen Windage Tray
- 1/2" NPT Temperature Bung
- Provision for Pan Mounted Dipstick
- Magnetic Drain Plug
Part TypeOil Pan
BrandCANTON RACING PRODUCTS
Package Height9.5
Package Width16.25
Package Length24.5
Weight20.0 PG
Part CategoryPerformance Parts
Dipstick PortYes
UsageCompetition
Hardware IncludedNo
BaffledYes
Pickup IncludedNo
Gasket Or Seal IncludedNo
Material16 Gauge Steel
Drain Plug IncludedYes
Engine Make/SizeChevy Small Block (262-400)
Capacity9 Quart System Capacity
Crank Scraper IncludedYes
Windage Tray IncludedYes
Part FitmentSemi Universal
Kicked OutYes
FinishSilver Plating
Vendor Part Number11-180T
Package Qty1
Package TypeEA
