Vehicle Info NeededCANTON RACING PRODUCTSPART NUMBER: 074-11-186

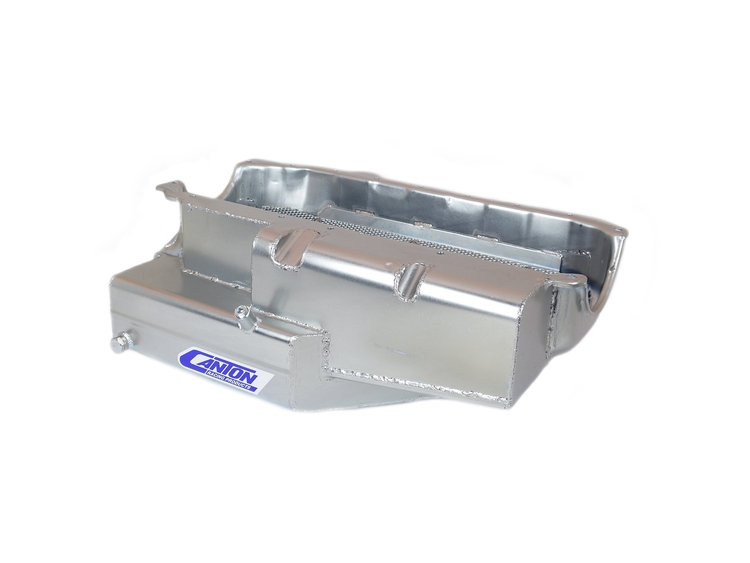

11-186 Circle Track Oil Pan Pre-1985 Small Block Chevy Blocks
$73900
Ships on 10/16/2026
Lowest Price GuaranteeSmall Block Chevy Oil Pans
- Circle Track Oil Pan
- Pre-1985 Small Block Chevy Blocks
- Pro Style Power Series, Open Chassis
- 9 Quarts
This open chassis "L" style steel wet sump pan is for 1985 and earlier Small Block Chevy. It is designed for a chassis without a crossmember under the engine (asphalt and dirt modifieds, sprint cars, and some late models). It has an 11-1/2" wide, 16" long, 7" deep "L" sump with a 9-quart system capacity. Requires pickup and an offset aftermarket starter with a 153 or 168-tooth flywheel. Also an option for this pan is 074-20-914 Pro Louvered Windage Tray designed to replace its standard screen tray.Pan Features - Six Trap Door Baffles & Directional Oil Runners
- Crank Scraper
- Bolt-in Slosh Baffle
- Built-in Screen Windage Tray
- 1/2" NPT Temperature Bung
- Provision for Pan Mounted Dipstick
- Magnetic Drain Plug
Part TypeOil Pan
BrandCANTON RACING PRODUCTS
Package Height9.5
Package Width16.25
Package Length24.5
Weight23.0 PG
Part CategoryPerformance Parts
Dipstick PortYes
UsageCompetition
Hardware IncludedNo
BaffledYes
Pickup IncludedNo
Gasket Or Seal IncludedNo
Material16 Gauge Steel
Drain Plug IncludedYes
Engine Make/SizeChevy Small Block (262-400)
Capacity9 Quart System Capacity
Crank Scraper IncludedNo
Windage Tray IncludedYes
Part FitmentSemi Universal
Kicked OutYes
FinishSilver Plating
Vendor Part Number11-186
Package Qty1
Package TypeEA
