Product Discontinued
CANTON RACING PRODUCTSPART NUMBER: 074-11-188

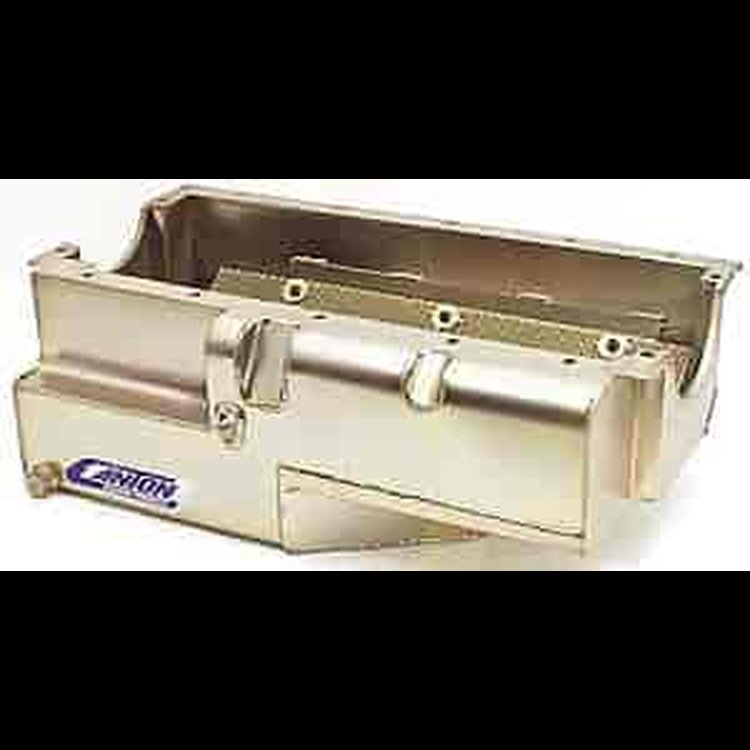

Circle Track Oil Pan Small Block Chevy Dart/Rocket Blocks
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Small Block Chevy Oil Pans
- Circle Track Oil Pan
- Small Block Chevy Dart/Rocket Blocks
- Pro Style Power Series, Open Chassis
- 9 Quarts
This open chassis "L" style steel wet sump is for Dart spread rail Aluminum, Iron, 2 and 4 bolt Chevy engine blocks. It is designed for a chassis without a crossmember under the engine (asphalt and dirt modifieds, sprint cars, and some late models). It has an 11-1/2" wide, 16" long, 7-1/4" deep "L" sump with a 9-quart system capacity. Requires pickup and an offset aftermarket starter with a 153 or 168-tooth flywheel. Also an option for this pan is 074-20-914 Pro Louvered Windage Tray designed to replace its standard screen tray.Pan Features - Six Trap Door Baffles & Directional Oil Runners
- Crank Scraper
- Bolt-in Slosh Baffle
- Built-in Screen Windage Tray
- 1/2" NPT Temperature Bung
- Provision for Pan Mounted Dipstick
- Magnetic Drain Plug
Part TypeOil Pan
BrandCANTON RACING PRODUCTS
Package Height9.5
Package Width16.25
Package Length24.5
Weight23.0 PG
Part CategoryPerformance Parts
Vendor Part Number11-188
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
