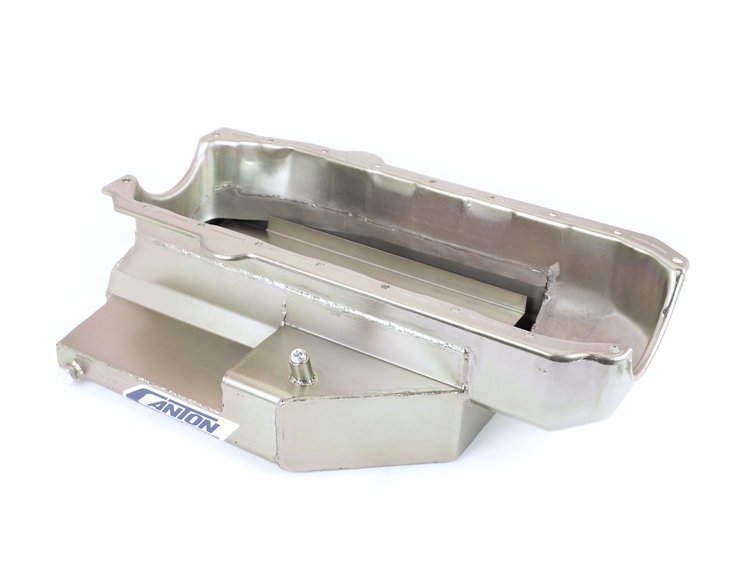

Small Block Chevy Oil Pans
- Circle Track Oil Pan
- Pre-1985 Small Block Chevy Blocks
- Competition Series, Open Chassis
- 8 Quarts
This Competition open chassis wet sump is for 1985 and earlier Small Block Chevy. It is designed for a chassis without a crossmember under the engine (asphalt and dirt modifieds, sprint cars, and some late models). It provides maximum ground clearance at only 6-1/2" deep but has an 8-quart system capacity because of its "L" design. Sump measures 11-1/2" wide, 16" long, 6-1/2" deep. Requires pickup.Pan Features - Six Trap Door Baffles & Three Directional Oil Runners
- Crank Scraper
- Bolt-in Slosh Baffle
- Built-in Screen Windage Tray
- 1/2" NPT Temperature Bung
- Provision for Pan Mounted Dipstick
- Magnetic Drain Plug
Part TypeOil Pan
BrandCANTON RACING PRODUCTS
Package Height9.0
Package Width16.5
Package Length24.0
Weight18.41 PG
Part CategoryPerformance Parts
Dipstick PortYes
UsageCompetition
Hardware IncludedNo
BaffledYes
Pickup IncludedNo
Gasket Or Seal IncludedNo
Material16 Gauge Steel
Drain Plug IncludedYes
Engine Make/SizeChevy Small Block (262-400)
Capacity8 Quart System Capacity
Crank Scraper IncludedYes
Windage Tray IncludedYes
Part FitmentSemi Universal
Kicked OutYes
FinishSilver Plating
Vendor Part Number11-190
Package Qty1
Package TypeEA
