Vehicle Info NeededCANTON RACING PRODUCTSPART NUMBER: 074-11-224T

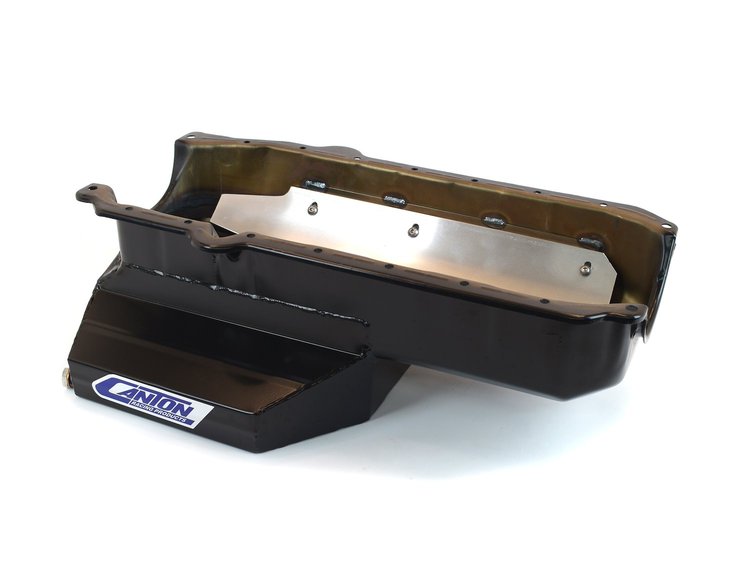

Circle Track Oil Pan 1986-Up Small Block Chevy Blocks (1-piece Rear Seal)
$46600
Ships on 09/21/2026
Lowest Price GuaranteeSmall Block Chevy Oil Pans
- Circle Track Oil Pan
- 1986-Up Small Block Chevy Blocks
(1-piece Rear Seal) - Competition Series, Crate Engine "Late Model"
- 8 Quarts

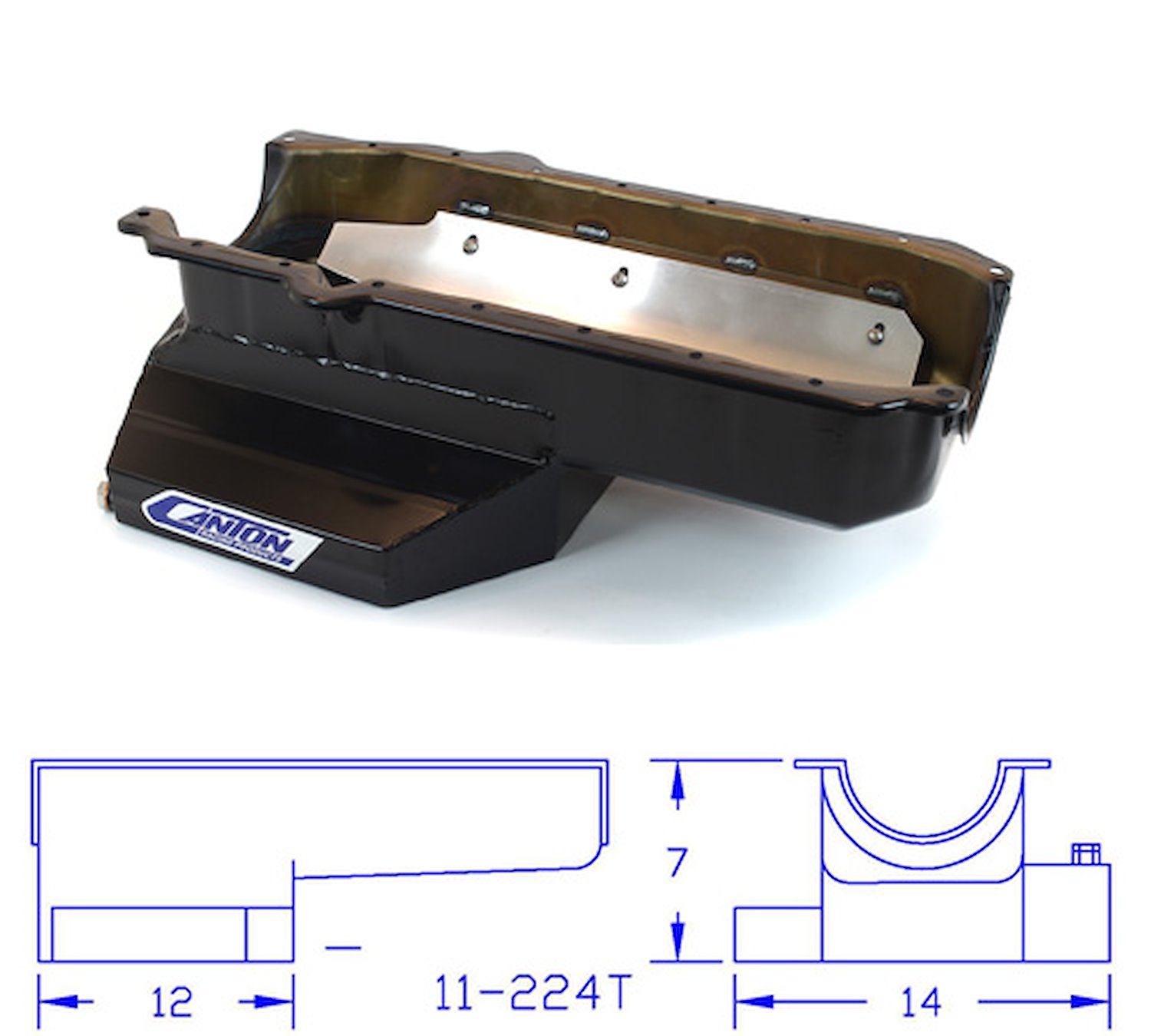

This Competition wet sump is for 1986 and newer Small Block Chevy with a one-piece seal. The oil pan is designed to be replacement/upgrade for the GM performance circle track crate engine "late model" pan. The deep "T" sump gives increased oil capacity in a shallow sump design. It has a 7" deep, 12" long, 14" wide sump and a 8-quart system capacity. Requires pickup.Pan Features - Six Trap Door Baffles
- Crank Scraper
- Louvered Windage Tray
- Oil Check Plug
- Magnetic Drain Plug
Part TypeOil Pan
BrandCANTON RACING PRODUCTS
Package Height9.75
Package Width19.15
Package Length24.0
Weight16.75 PG
Part CategoryPerformance Parts
Dipstick PortYes
UsageCompetition
Hardware IncludedNo
BaffledYes
Pickup IncludedNo
Gasket Or Seal IncludedNo
Material16 Gauge Steel
Drain Plug IncludedYes
Engine Make/SizeChevy Small Block (262-400)
Capacity8 Quart System Capacity
Crank Scraper IncludedYes
Windage Tray IncludedYes
Kicked OutYes
FinishSilver Plating
Vendor Part Number11-224T
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
