Small Block Chevy Oil Pans

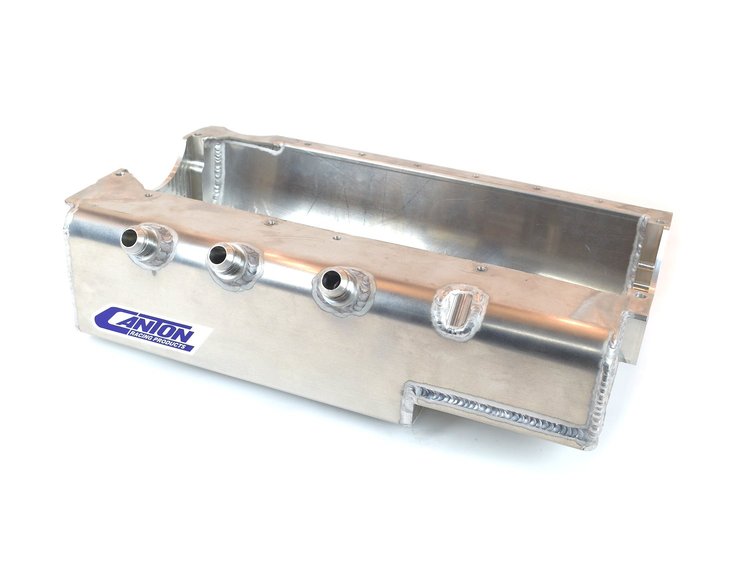

- Dry Sump Oil Pan
- Pre-1985 Small Block Chevy Blocks
- Deep Aluminum Pro Style
- Three -12AN Right Side Pickups (Top Exit)
- Rear Mount Stater
This aluminum 5" deep dry sump pan is for all pre-1985 blocks with a two-piece seal. Pan mounting bolts are accessed through plugs in the bottom of the pan. Can be used with our 074-20-820 crank scraper. Requires the use of a rear mounted starter.Pan Features - Three -12AN Pickups Exiting on the Right Side
- Pickup Tube Clean Out Ports
- Pro Style Oil Recovery Pouch
- Billet Seal For A Proper Fit
- Built-In Louver Windage Tray
Part TypeOil Pan
BrandCANTON RACING PRODUCTS
Package Height10.0
Package Width14.0
Package Length26.0
Weight11.0 PG
Part CategoryPerformance Parts
UsageCompetition
Hardware IncludedNo
BaffledNo
Pickup IncludedNo
Gasket Or Seal IncludedNo
Material.100 Aluminum
Drain Plug IncludedYes
Engine Make/SizeChevy Small Block (262-400)
Sump Depth5 inches
Crank Scraper IncludedNo
Windage Tray IncludedYes
Part FitmentSemi Universal
Kicked OutNo
FinishRaw Aluminum
Vendor Part Number12-146A
Package Qty1
Package TypeEA
