Vehicle Info NeededCANTON RACING PRODUCTSPART NUMBER: 074-13-082

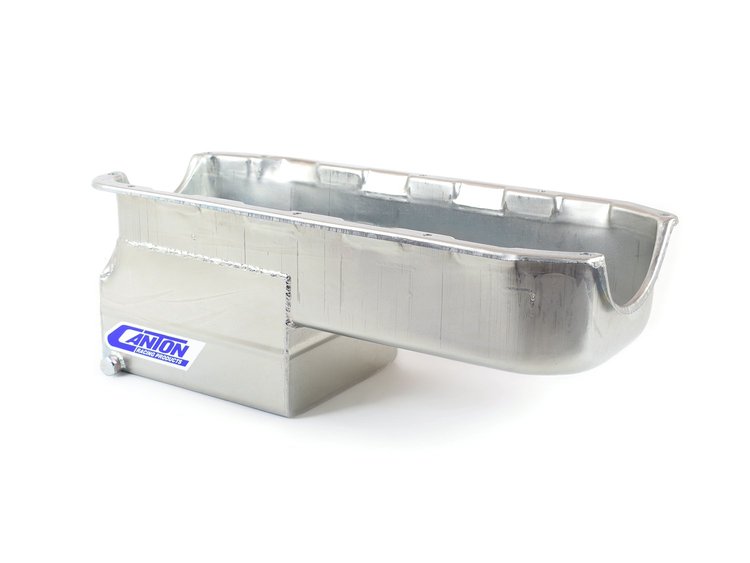

Drag Race Oil Pan Pre-1985 Small Block Chevy Blocks (2-pc Rear Seal)
$37800
2 left in stock
Ships Today
Lowest Price GuaranteeSmall Block Chevy Oil Pans
- Drag Race Oil Pan
- Pre-1985 Small Block Chevy Blocks (2-pc Rear Seal)
- Clears 4" Stroke
- 6 Quarts
This bracket drag race stroker oil pan is for Small Block Chevy pre-'85 blocks with a two piece rear main. It is designed to fit most stock chassis. It has an 8" deep by 9-1/2" long sump and a 6-quart system capacity. Clears a 4" stroke with a steel rod. Will work with stock or aftermarket starters.
Features: - Trap Door Baffle
- Competition Oil Recovery System WithWindage Tray & Crank Scraper
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
- Canton Racing Drag Race Oil Pans provide oil control and power in several configurations for all types of performance, from bracket to all-out drag applications.
JEGS Easy Kits are designed by JEGS Professionals to help you get all the performance parts you need.
Part TypeOil Pan
Product LineCanton Racing Drag Race Oil Pans
BrandCANTON RACING PRODUCTS
Package Height10.4
Package Width13.4
Package Length26.5
Weight14.17 PG
Part CategoryPerformance Parts
Oil Pan Capacity5 quarts
Dipstick PortYes
Hardware IncludedYes
Dipstick ProvisionYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
Sump Depth8 inches
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4 in (101.6 mm)
Gaskets IncludedNo
Rear Main Seal Style2-piece
Sump LocationRear
Capacity6 Quart System Capacity
Kicked OutNo
FinishSilver Plating
Stroker ClearancedYes
BaffledYes
Gasket Or Seal IncludedNo
QuantitySold individually
Material16 Gauge Steel
Oil Pan FinishGold iridited
Drain Plug IncludedYes
Oil Pan Depth8 in (203.2 mm)
Crank Scraper IncludedYes
Windage Tray IncludedYes
Vendor Part Number13-082
Package Qty1
Package TypeEA
