Vehicle Info NeededCANTON RACING PRODUCTSPART NUMBER: 074-13-622

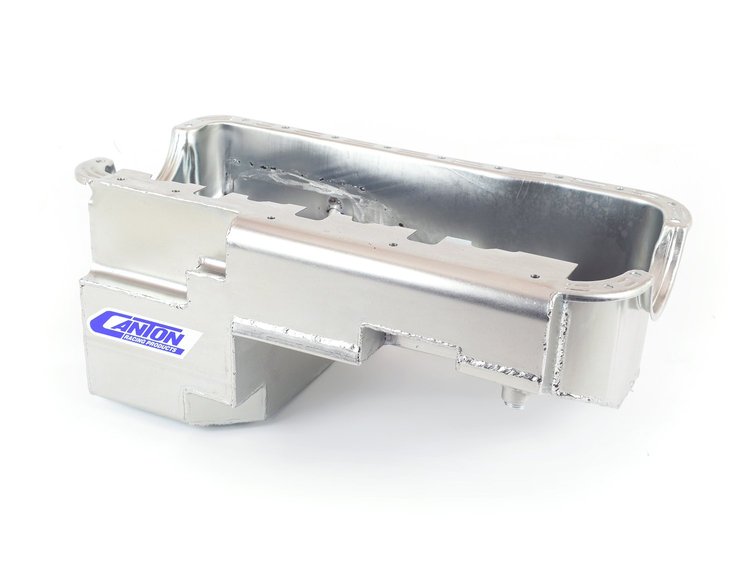

13-622 Drag Race Oil Pan Small Block Ford 289-302 SVO
$84800
Ships on Sep 15, 2026
Lowest Price GuaranteeSmall Block Ford Oil Pans
- Drag Race Oil Pan
- Small Block Ford 289-302 SVO
- Rear Sump
- 7 Quarts
This Fox Body drag race pro-style power pan is for Ford 289-302 blocks. It has a 9" deep by 7" long by 11" wide rear sump and a 7 qt. system capacity. The front sump is 6-1/2" deep. The large oil recovery pouch requires the right side mounting bolts to be accessed through plugs in the bottom of the pan. Works with long tube headers & late model stock starter.The Pan Features: - Pro Style Oil Recovery Pouch
- Slosh Baffle
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Part TypeOil Pan
BrandCANTON RACING PRODUCTS
Package Height1.2
Package Width14.0
Package Length26.5
Weight17.165 PG
Part CategoryPerformance Parts
Dipstick PortYes
UsageCompetition
Hardware IncludedNo
BaffledYes
Pickup IncludedNo
Gasket Or Seal IncludedNo
Material16 Gauge Steel
Drain Plug IncludedYes
Engine Make/SizeFord Small Block 302
Sump Depth9 inches
Capacity7 Quart System Capacity
Crank Scraper IncludedNo
Windage Tray IncludedNo
Part FitmentSemi Universal
Kicked OutNo
FinishSilver Plating
Vendor Part Number13-622
Package Qty1
Package TypeEA
