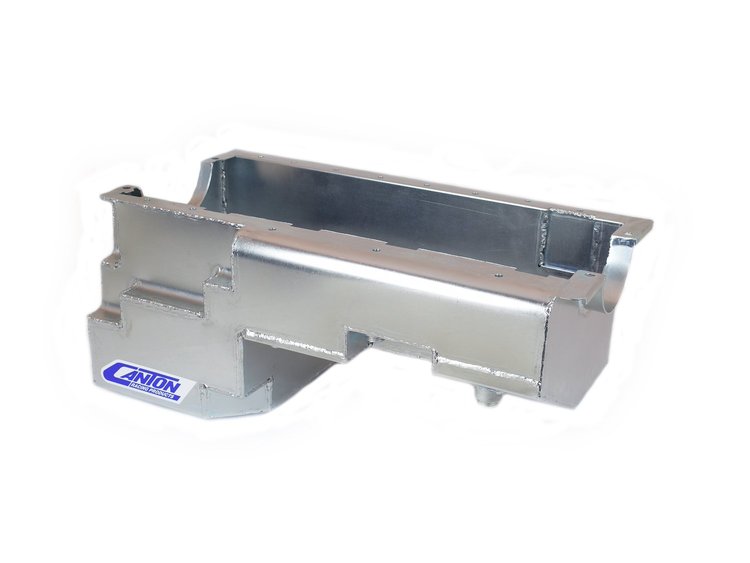

13-672SV Drag Race Oil Pan Small Block Ford 351W
InfoVehicle Info Needed
CANTON RACING PRODUCTSPART NUMBER: 074-13-672SV

13-672SV Drag Race Oil Pan Small Block Ford 351W

$69900
2 left in stock
ShippingShips on Sep 14, 2026
Lowest PriceLowest Price Guarantee

Small Block Ford Oil Pans
    Drag Race Oil Pan
  • Small Block Ford 351W
  • Rear Sump
  • 7 Quarts

    This Fox body drag race pro-style power pan is for 351W with 2 or 4 bolt rear main caps & 164 or 157 tooth flywheel applications. It has a 9" deep rear sump and a 7-quart system capacity. Designed to work with our oneway screen windage trays, which mount directly to the main caps studs. The large oil recovery pouch requires the right side mounting bolts to be accessed through plugs in the bottom of the pan. Works with long tube headers & late model stock starter.

    Features:
  • Pro Style Oil Recovery Pouch
  • Slosh Baffle
  • Provision For Our Pan Mounted Dipstick
  • Magnetic Drain Plug
Part TypeOil Pan
BrandCANTON RACING PRODUCTS
Package Height10.6
Package Width13.4
Package Length26.6
Weight19.35 PG
Part CategoryPerformance Parts
Oil Pan Capacity6 quarts
Dipstick PortYes
Hardware IncludedNo
Dipstick ProvisionYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
Kickout PositionPassenger side
Sump Depth9 inches
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4 in (101.6 mm)
Gaskets IncludedNo
Rear Main Seal Style1-piece, 2-piece
Sump LocationRear
Capacity7 Quart System Capacity
Kicked OutNo
FinishSilver Plating
Stroker ClearancedYes
BaffledYes
Gasket Or Seal IncludedNo
QuantitySold individually
Material16 Gauge Steel
Oil Pan FinishGold iridited
Drain Plug IncludedYes
Oil Pan Depth9 in (228.6 mm)
Crank Scraper IncludedNo
Windage Tray IncludedNo
Dipstick LocationDriver
Part FitmentSemi Universal
Vendor Part Number13-672SV
Package Qty1
Package TypeEA
