Vehicle Info NeededCANTON RACING PRODUCTSPART NUMBER: 074-15-240T

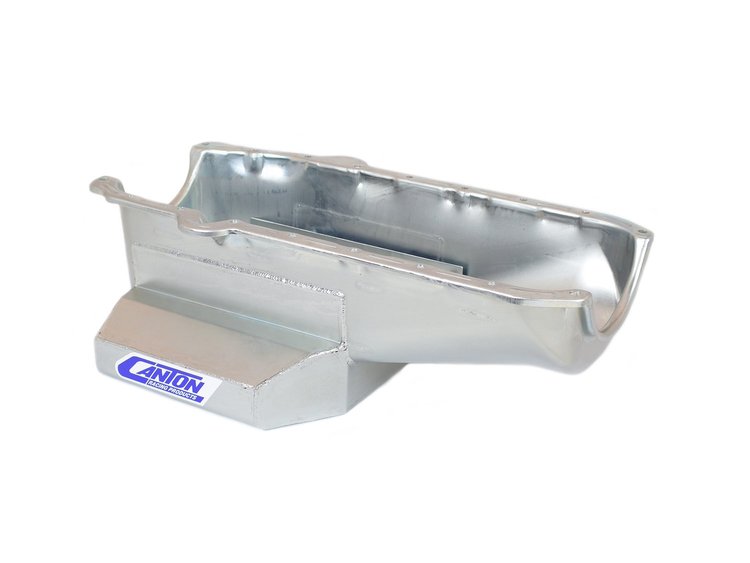

15-240T Street / Strip Oil Pan 1986-Up Small Block Chevy (1-Piece Rear Seal)
$55600
Ships Tomorrow
Lowest Price GuaranteeSmall Block Chevy Oil Pans
- Street / Strip Oil Pan
- 1986-Up Small Block Chevy (1-Piece Rear Seal)
- 1984-96 Corvette
- 7 Quarts

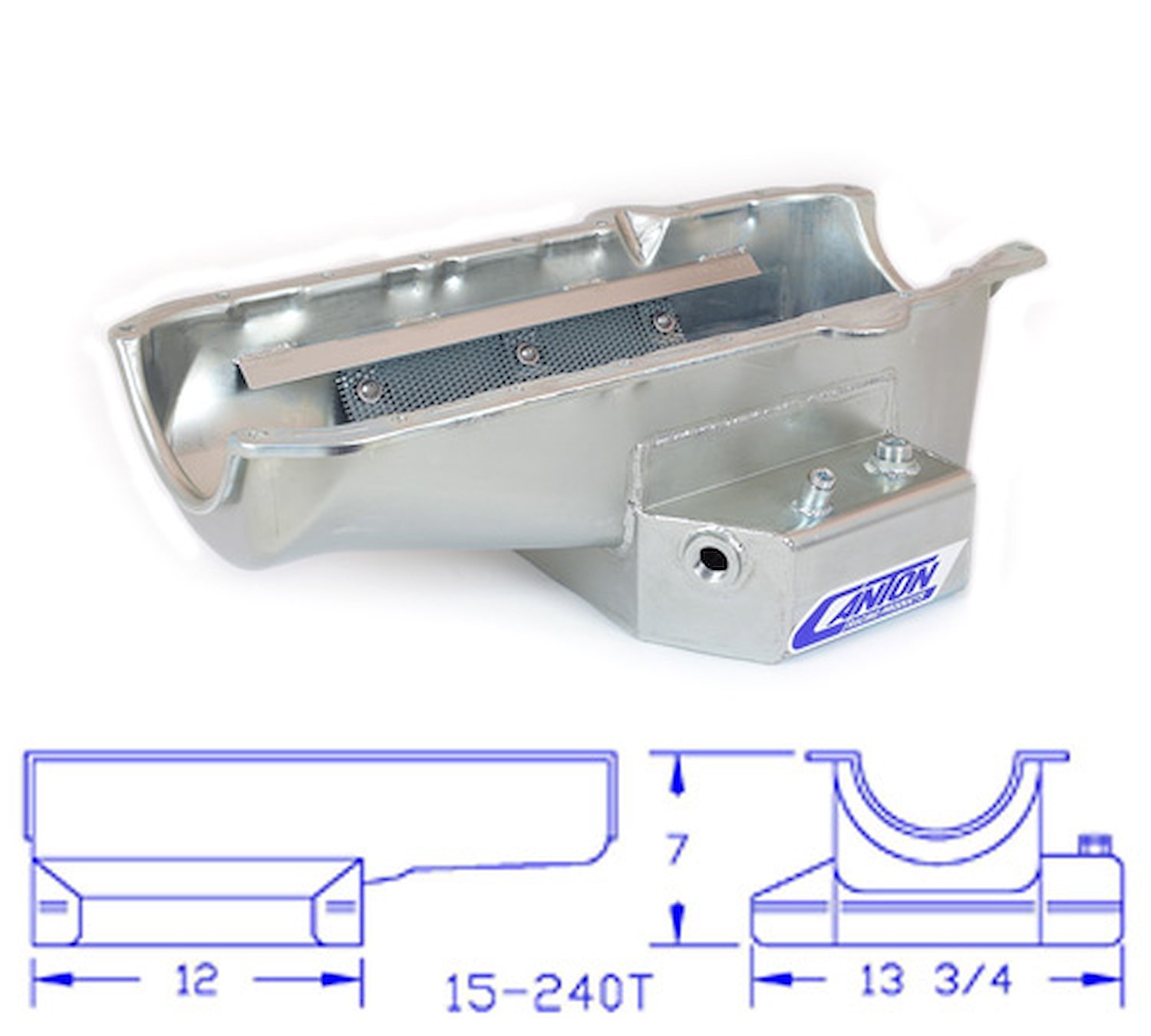

This Small Block Chevy late Corvette road race pan is for 1986-Newer blocks with one-piece seal. It is designed for 1984-96 Corvettes but will also fit earlier Corvettes. It has a 7" deep, 13-3/4" wide, 12" long sump with 7-quart system capacity. Will work with stock starter. This pan requires pickup. - Five Trap Door Baffles
- Crank Scraper
- Built-In Screen Windage Tray
- 1/2" NPT Temperature Bung
- Provision for Pan-Mounted Dipstick
- Magnetic Drain Plug
- Includes 20mm Fitting for Low Oil Warning Sender (Purchase Plug #22-405 if not using sender)
Part TypeOil Pan
BrandCANTON RACING PRODUCTS
Package Height7.7
Package Width15.0
Package Length22.5
Weight16.6 PG
Part CategoryPerformance Parts
Dipstick PortYes
UsageCompetition
Hardware IncludedNo
BaffledYes
Pickup IncludedNo
Gasket Or Seal IncludedNo
Material16 Gauge Steel
Drain Plug IncludedYes
Engine Make/SizeChevy Small Block (262-400)
Capacity7 Quart System Capacity
Crank Scraper IncludedYes
Windage Tray IncludedYes
Part FitmentSemi Universal
Kicked OutYes
FinishSilver Plating
Vendor Part Number15-240T
Package Qty1
Package TypeEA
