Vehicle Info NeededCANTON RACING PRODUCTSPART NUMBER: 074-15-260

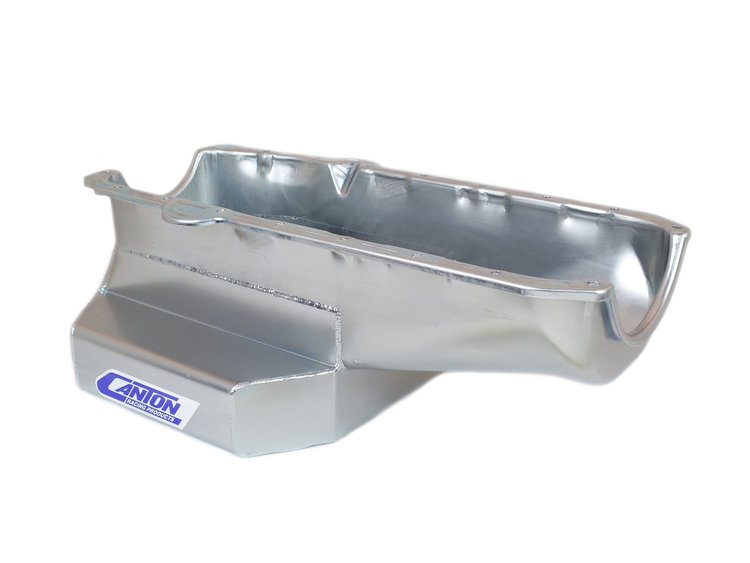

15-260 Street / Strip Oil Pan Pre-1980 Small Block Chevy
$52500
Ships on 09/15/2026
Lowest Price GuaranteeSmall Block Chevy Oil Pans
- Street / Strip Oil Pan
- Pre-1980 Small Block Chevy
- 8 Quarts
This small block Chevy road race pan is for pre-1980 blocks with left side dipstick. It is designed as a general purpose road race oil pan to fit in most applications, including front steer chassis with aftermarket or Camaro front end. It has a 7-1/2" deep, 13-3/4" wide, 12" long sump with 8-quart system capacity. Pickup required.
Features - Five Trap Door Baffles
- Crank Scraper
- Built-In Screen Windage Tray
- 1/2" NPT Temperature Bung
- Provision for Pan-Mounted Dipstick
- Magnetic Drain Plug
Oil Pump Pickups - 074-20-010 - Pickup for SBC Standard Volume Oil Pumps M55 & M55A
- 074-20-013 - Pickup for SBC Standard Volume Oil Pump M155 with 3/4" Inlet
- 074-20-020 - Pickup for SBC High Volume Oil Pump M55HV
- 074-20-023 - Pickup for SBC High Volume Oil Pump M155HV with 3/4" Inlet
- 074-20-021 - Bolt-On Pickup for Melling M10555 Pumps
Part TypeOil Pan
BrandCANTON RACING PRODUCTS
Package Height9.5
Package Width16.0
Package Length24.1
Weight18.685 PG
Part CategoryPerformance Parts
Dipstick PortYes
UsageCompetition
Hardware IncludedNo
BaffledYes
Pickup IncludedNo
Gasket Or Seal IncludedNo
Material16 Gauge Steel
Drain Plug IncludedYes
Engine Make/SizeChevy Small Block (262-400)
Sump Depth7.5 inches
Capacity8 Quart System Capacity
Crank Scraper IncludedYes
Windage Tray IncludedYes
Part FitmentSemi Universal
Kicked OutYes
FinishSilver Plating
Vendor Part Number15-260
Package Qty1
Package TypeEA
