Vehicle Info NeededCANTON RACING PRODUCTSPART NUMBER: 074-15-644

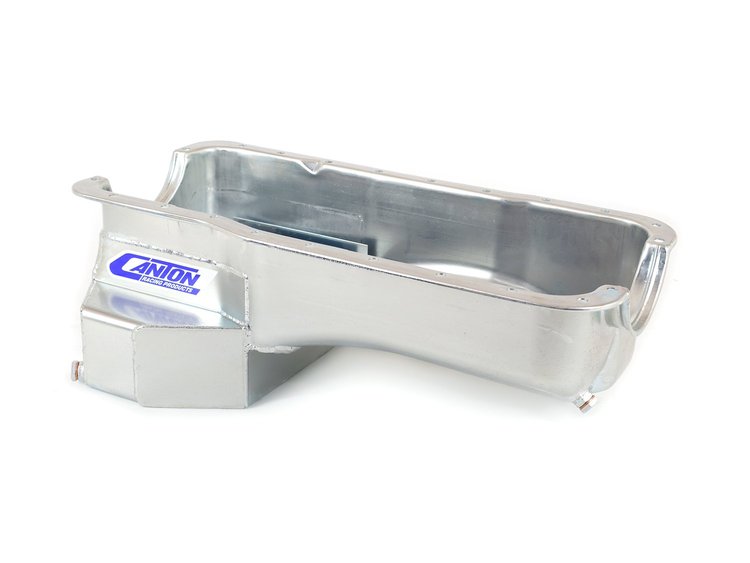

15-644 Street / Strip Oil Pan Ford 289-302
$57500
Ships on 09/24/2026
Lowest Price GuaranteeSmall Block Ford Oil Pans
- Street / Strip Oil Pan
- Ford 289-302
- Rear Sump
- 7 Quarts
This "T" style rear sump oil pan is for Ford 289-302 blocks in Fox Body Mustangs. It has a 7-1/2" deep by 8" long by 13-1/2" wide sump and a 7-quart system capacity. Some long tube headers require modification. This pan requires 074-15-645 pickup.The Pan Features: - Retains Stock Depth
- Diamond Shape Road Race Baffle Assembly With
- Four Trap Doors
- Crank Scraper
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Part TypeOil Pan
BrandCANTON RACING PRODUCTS
Package Height10.0
Package Width14.0
Package Length26.0
Weight17.0 PG
Part CategoryPerformance Parts
Dipstick PortYes
UsageCompetition
Hardware IncludedNo
BaffledYes
Pickup IncludedNo
Gasket Or Seal IncludedNo
Material16 Gauge Steel
Drain Plug IncludedYes
Engine Make/SizeFord 289-302
Sump Depth7.5 inches
Capacity7 Quart System Capacity
Crank Scraper IncludedYes
Windage Tray IncludedNo
Part FitmentSemi Universal
Kicked OutYes
FinishSilver Plating
Vendor Part Number15-644
Package Qty1
Package TypeEA
