Vehicle Info NeededCANTON RACING PRODUCTSPART NUMBER: 074-15-736

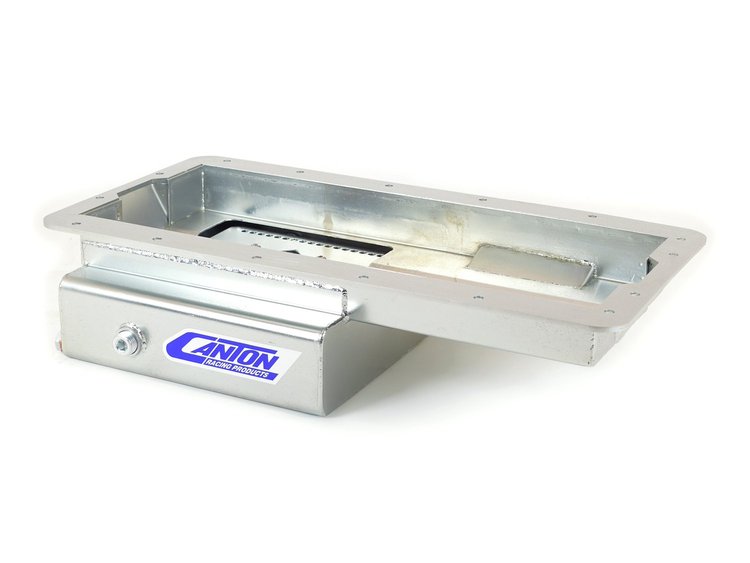

15-736 Street / Strip Oil Pan Ford 5.0L Coyote
$55500
3 left in stock
Ships Today
Lowest Price GuaranteeSmall Block Ford Oil Pans
- Street / Strip Oil Pan
- Ford 5.0L Coyote
- Rear Sump
- 7 Quarts
This Ford 5.0 Coyote oil pan is designed for kit car applications where ground clearance is limited. Like all Canton pans it is built with heavy gauge steel and is tig welded for strong leak free performance. The sump is 5" deep, 11.5" wide, 10.5 long and has a 7-quart system capacity. Features include, Diamond shaped road race baffle assembly with four trap doors, a removable windage/anit-slosh baffle, 1/2" NPT temperature bung, and a 20mm fitting for the factory low oil warning sender. Use road race pickup part number 074-15-737 The Pan Features: - Diamond Shape Road Race Baffle Assembly With Four Trap Doors
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Part TypeOil Pan
BrandCANTON RACING PRODUCTS
Package Height9.9
Package Width14.1
Package Length26.6
Weight17.89 PG
Part CategoryPerformance Parts
Dipstick PortNo
UsageCompetition
Hardware IncludedNo
BaffledYes
Pickup IncludedNo
Gasket Or Seal IncludedNo
Material16 Gauge Steel
Drain Plug IncludedYes
Engine Make/SizeFord 5.0L/302
Capacity7 Quart System Capacity
Crank Scraper IncludedNo
Windage Tray IncludedNo
Part FitmentSemi Universal
Kicked OutYes
FinishSilver Plating
Vendor Part Number15-736
Package Qty1
Package TypeEA
No Questions
No Reviews
