Vehicle Info NeededCANTON RACING PRODUCTSPART NUMBER: 074-15-794

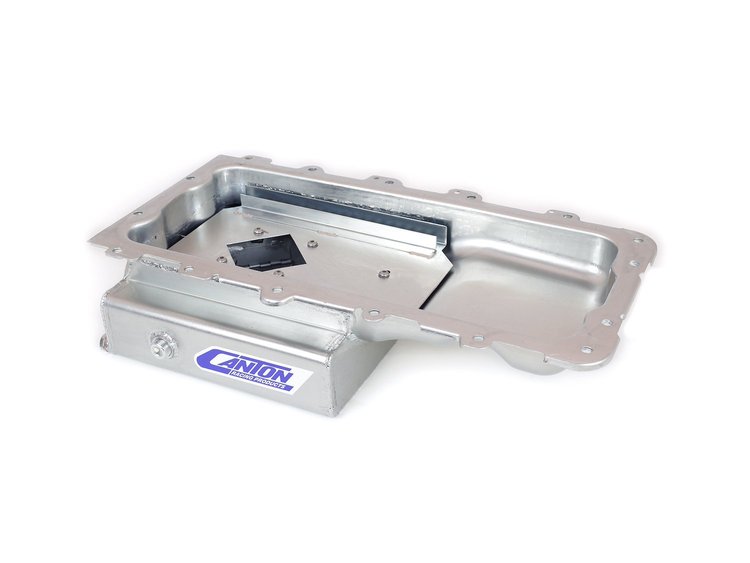

15-794 Street / Strip Oil Pan Ford 4.6L/5.4L
$65500
Ships on 10/16/2026
Lowest Price GuaranteeSmall Block Ford Oil Pans
- Street / Strip Oil Pan
- Ford 4.6L/5.4L
- Rear Sump
- 7 Quarts

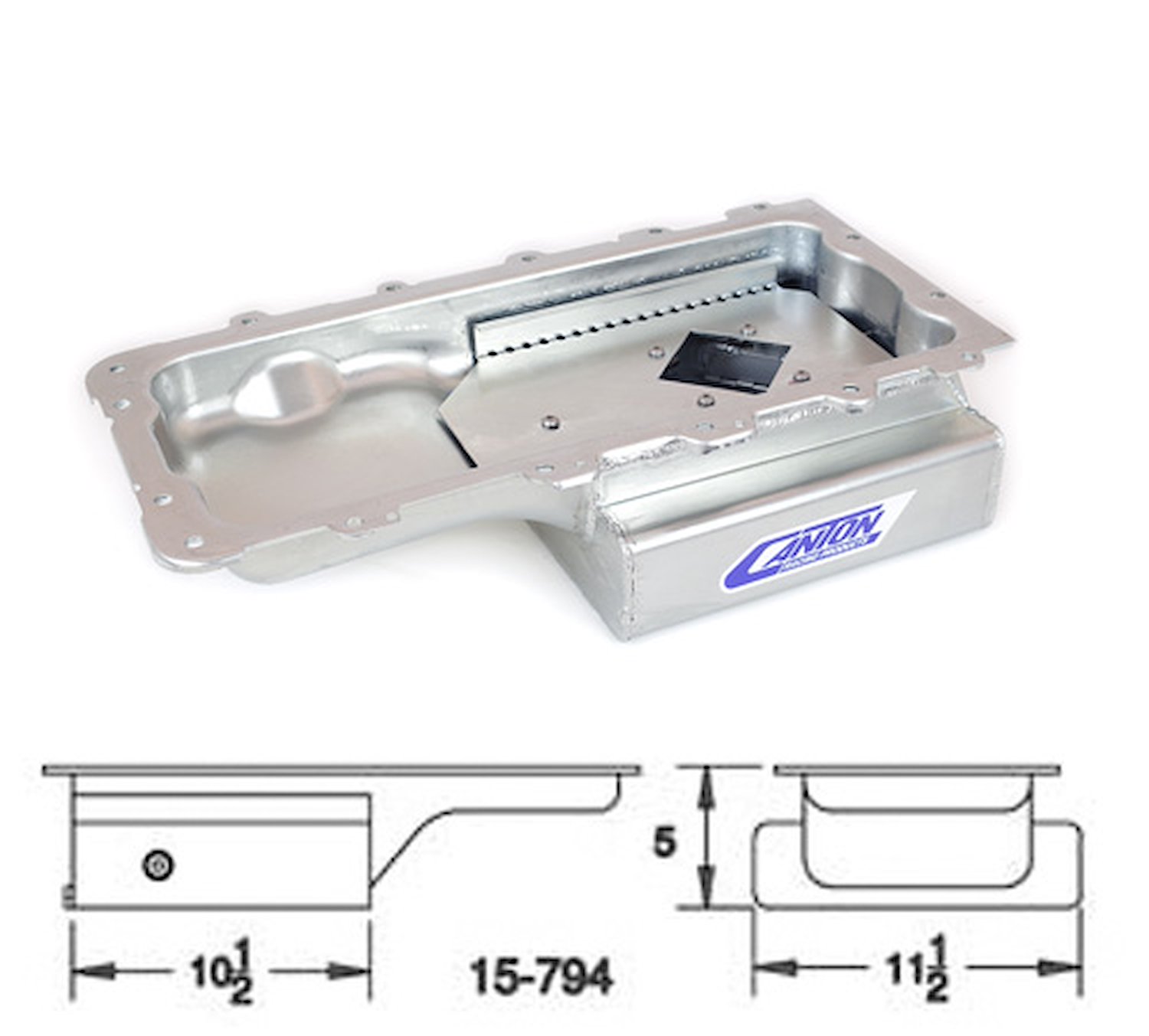

This T-style modular rear sump road race oil pan is designed to install a Ford 4.6L/5.4L into a kit car without losing ground clearance. It has 5" deep, 11-1/2" wide by 10-1/2" long sump and 7-quart system capacity. This pan requires 074-15-795 2V pickup. Features - Diamond-Shaped Road Race Baffle Assembly with Four Trap Doors
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Magnetic Drain Plug
Part TypeOil Pan
BrandCANTON RACING PRODUCTS
Package Height10.0
Package Width14.0
Package Length26.0
Weight14.0 PG
Part CategoryPerformance Parts
Dipstick PortNo
UsageCompetition
Hardware IncludedNo
BaffledYes
Pickup IncludedNo
Gasket Or Seal IncludedNo
Material16 Gauge Steel
Drain Plug IncludedYes
Sump Depth5 inches
Capacity7 Quart System Capacity
Crank Scraper IncludedNo
Windage Tray IncludedNo
Part FitmentSemi Universal
Kicked OutYes
FinishSilver Plating
Vendor Part Number15-794
Package Qty1
Package TypeEA
