Vehicle Info NeededCANTON RACING PRODUCTSPART NUMBER: 074-18-100T

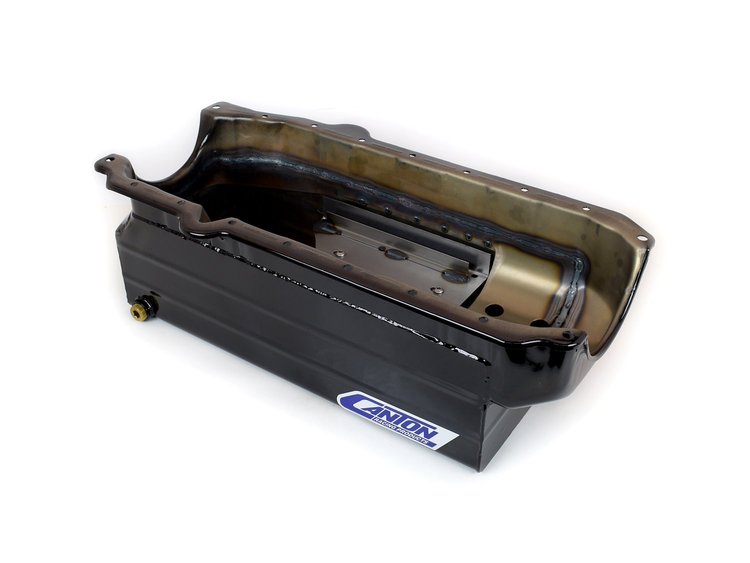

18-100T Marine Oil Pan 1986-Up Small Block Chevy Blocks (1-piece Rear Seal)
$56800
Ships on 09/21/2026
Lowest Price GuaranteeSmall Block Chevy Oil Pans
- Marine Oil Pan
- 1986-Up Small Block Chevy Blocks (1-piece Rear Seal)
- High Capacity
- 8 Quarts
This high-capacity marine oil pan is for 1986 and newer SBC blocks with one-piece seal. With a deep 7-1/2" full length sump, it holds 8 quarts of oil. Designed for applications with the pickup at the flywheel end of the engine. Requires pickup #074-18-101.Pan Features - Powdercoated 14 gauge steel
- Double Trap Door Baffles
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Drain Fittings
- Brass Plugs
- Provision for Pan Mounted Dipstick
Part TypeOil Pan
BrandCANTON RACING PRODUCTS
Package Height11.9
Package Width13.6
Package Length26.9
Weight18.32 PG
Part CategoryPerformance Parts
Dipstick PortYes
UsageMarine
Hardware IncludedNo
BaffledYes
Pickup IncludedNo
Gasket Or Seal IncludedNo
Material14 Gauge Steel
Drain Plug IncludedYes
Engine Make/SizeChevy Small Block (262-400)
Sump Depth7.5 inches
Capacity8 Quart System Capacity
Crank Scraper IncludedNo
Windage Tray IncludedNo
Part FitmentSemi Universal
Kicked OutNo
FinishBlack Gloss Powdercoat
Vendor Part Number18-100T
Package Qty1
Package TypeEA
