Vehicle Info NeededCANTON RACING PRODUCTSPART NUMBER: 074-18-360

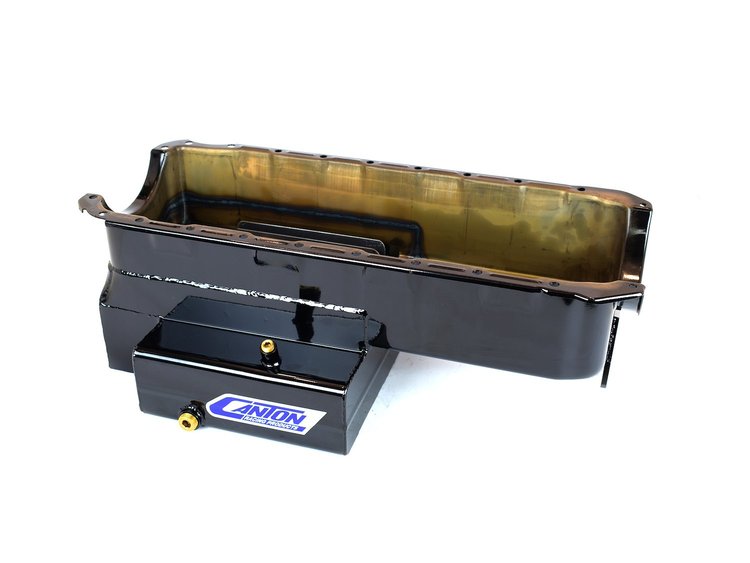

18-360 Marine Oil Pan Big Block Chevy Mark IV Blocks (2-Piece Rear Seal)
$67900
Ships on 09/15/2026
Lowest Price GuaranteeBig Block Chevy Oil Pans
- Marine Oil Pan
- Big Block Chevy Mark IV Blocks (2-Piece Rear Seal)
- 10 Quarts
This marine oil pan is for Big Block Chevy Mark IV blocks with two-piece seal. Designed for applications with the pickup at the flywheel end of the engine. It has a 8-1/2" deep, 13" long, 14-1/4" wide sump and holds 10 quarts of oil. Requires pickup 074-18-361.Pan Features - Powdercoated 14 gauge steel
- Diamond Shaped Baffle Assembly with Four Trap Door Baffles
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Drain Fittings
- Brass Plugs
- Provision for Pan Mounted Dipstick
Part TypeOil Pan
BrandCANTON RACING PRODUCTS
Package Height2.5
Package Width20.5
Package Length27.0
Weight15.3 PG
Part CategoryPerformance Parts
Dipstick PortYes
UsageMarine
Hardware IncludedNo
BaffledYes
Pickup IncludedNo
Gasket Or Seal IncludedNo
Material14 Gauge Steel
Drain Plug IncludedYes
Engine Make/SizeChevy Gen IV
Capacity10 Quart System Capacity
Crank Scraper IncludedNo
Windage Tray IncludedNo
Part FitmentSemi Universal
Kicked OutYes
FinishBlack Gloss Powdercoat
Vendor Part Number18-360
Package Qty1
Package TypeEA
