Product Discontinued
CANTON RACING PRODUCTSPART NUMBER: 074-18-364

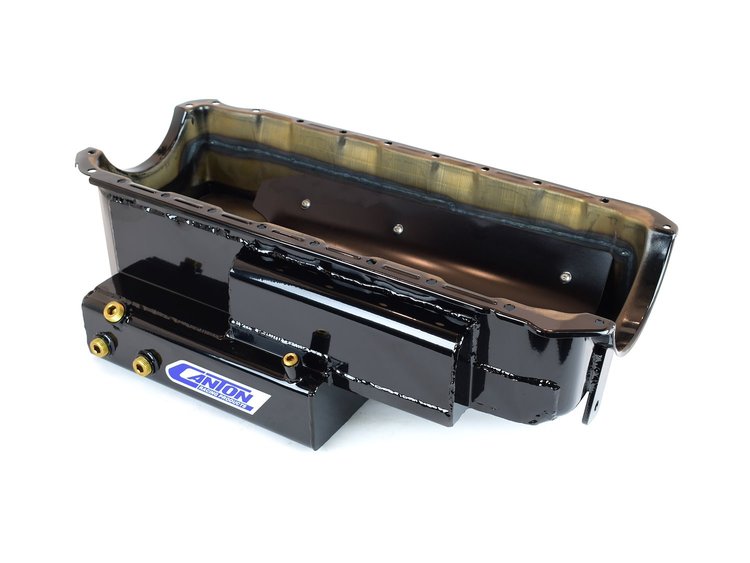

Marine Oil Pan Big Block Chevy Mark IV Blocks (2-Piece Rear Seal)
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Big Block Chevy Oil Pans
- Marine Oil Pan
- Big Block Chevy Mark IV Blocks (2-Piece Rear Seal)
- Power Series
- 10 Quarts

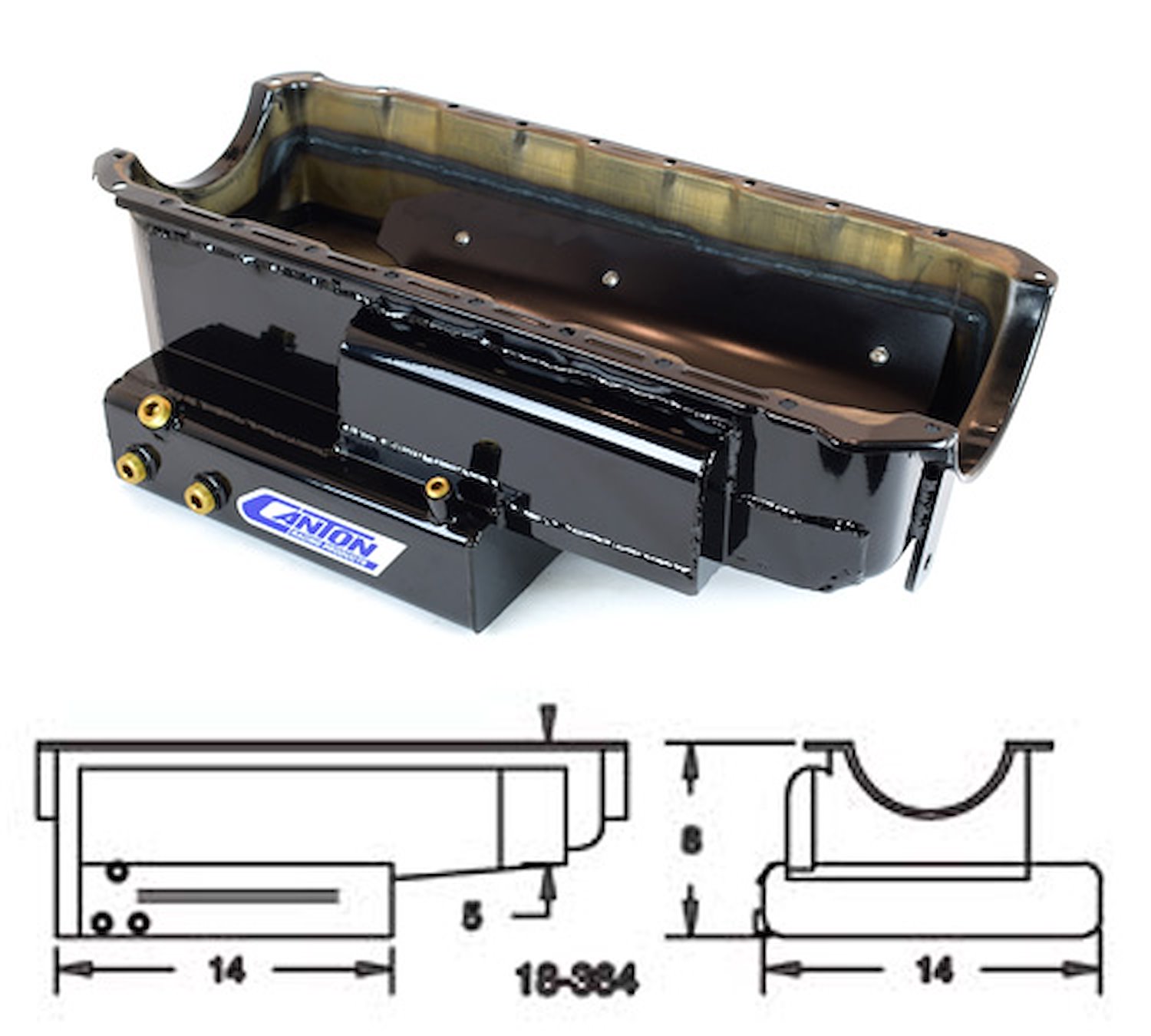

This extra high-capacity "T" sump is for standard Big Block Chevy with 2-piece rear seal. The 8" deep by 14" long by 14" wide sump holds 10 quarts of oil. The pan is angled in the front for improved drain back & is notched for a sea pump. Requires pickup 074-18-365. NOTE: This pan has been redesigned to clear OE marine starters with a 168-tooth flywheel.Pan Features - Powdercoated 14 gauge steel
- Six Trap Door Baffles
- Oil Recovery Pouch
- Crank Scraper
- Bolt-in Slosh Baffle
- Built-in Louvered Windage Tray
- Three 1/2" NPT Bungs
- Brass Plugs
- Provision for Pan Mounted Dipstick
Part TypeOil Pan
BrandCANTON RACING PRODUCTS
Package Height10.0
Package Width14.0
Package Length26.0
Weight27.0 PG
Part CategoryPerformance Parts
Dipstick PortYes
UsageMarine
Hardware IncludedNo
BaffledYes
Pickup IncludedNo
Gasket Or Seal IncludedNo
Material14 Gauge Steel
Drain Plug IncludedYes
Engine Make/SizeChevy Big Block (396-454)
Sump Depth8 inches
Capacity10 Quart System Capacity
Crank Scraper IncludedNo
Windage Tray IncludedYes
Part FitmentSemi Universal
Kicked OutYes
FinishBlack Gloss Powdercoat
Vendor Part Number18-364
Package Qty1
Package TypeEA
