Enhance your ride quality with the Carli EV25-20-GAS E-Venture System. Designed to provide optimal comfort on-road and exceptional capability off-road, this system features advanced damping technology that adapts to terrain changes in real-time, delivering superior performance.

Carli CS-FLVL-EV25-20-GAS E-Venture System 3 Inch Lift Features:

• 2.5 in. Front Lift with Progressive Rate Coil Springs
• 2.5 in. Remote Reservoir Active Shocks
• Carli/SDI Custom Tuned 2.5 in. Active Shocks with ECU, IMU, and Touch Screen Control
• Three Drive Modes: Mountain, Street, and Desert, plus Pro Mode for advanced tuning
• Real-Time Corner Damping Adjustments via Onboard Sensors and Proprietary Algorithms
• Touch Screen Interface with Ride Customization and Live Feedback
• ECU Mounts In-Cab for Optimal Temperature Control
• Radius Arm Drops and Caster Shims Maintain Geometry and Ride Comfort
• High Clearance Bump Stop Drops Protect Shock Investment
• Adjustable Track Bar for Axle Centering and Improved Stability
• DOT-Approved Stainless Brake Lines for Braking Performance and Travel Capacity
• Rear Load Adjustment for Hauling Comfort and Support
• Optimized for Use with Optional Torsion Sway Bar (Recommended)

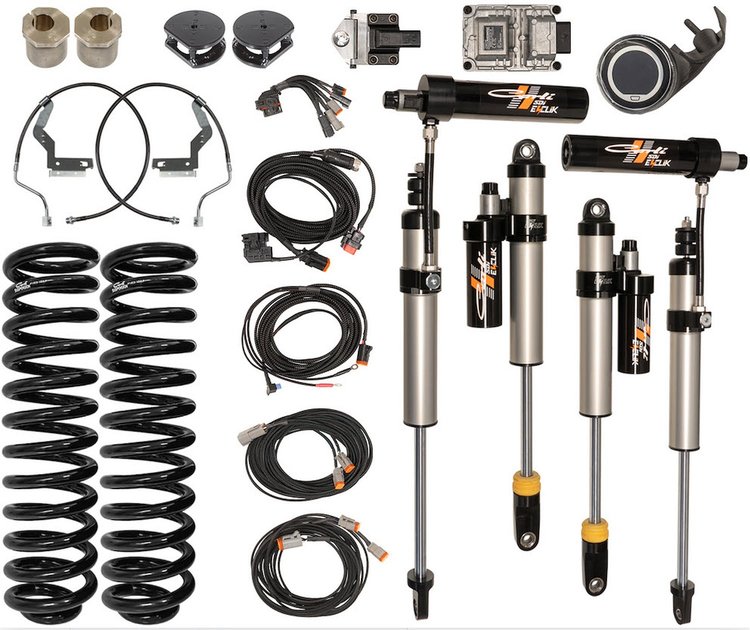

Carli CS-FLVL-EV25-20-GAS E-Venture System 3 Inch Lift Includes:

• Multi-Rate Coils
• Custom Tuned Shocks, Harnesses, & ECU
• Track Bar
• Brake Lines
• Caster Shims
• Bump Stop Drops
• Radius Arm Drop

Carli CS-FLVL-EV25-20-GAS E-Venture System 3 Inch Lift Notes:

• The E-Venture System is optimized for use with the Carli Torsion Sway Bar. Using alternative sway bar options will result in non-optimal system performance. Retaining the factory sway bar via drops or extended links is only recommended for vehicles equipped with snow plows, in-bed campers, or hauling at full payload capacity.
• The E-Venture System is optimized for use with Full Progressive Leaf Springs. Other configurations may reduce ride quality, hinder system performance, and result in unpredictable ride height, as Carli systems are engineered for the Add-a-Pack or Full Progressive Leaf Spring.
• Not Compatible with Onboard Scales or Smart Hitch Systems
• Factory Wheels with Oversized Tires May Rub Critical Components
• Recommended Wheel Setup: 17–18 in. Wheels, ≤9 in. Wide, 5 in. Backspacing, with 37 in. E-Rated Tires

Carli CS-FLVL-EV25-20-GAS E-Venture System 3 Inch Lift Required and Optional Components:

• Sway Bar (REQUIRED)
  • CS-FEL-LVL-17 – Extended Sway Bar End Link – 2.5""/3.5"" Lift – 17-24 Ford F-250/F-350 4x4
  • CS-FTSB-LVL-17 – Torsion Sway Bar Kit with End Links – 2.5""/3.5"" Lift – 17-24 Ford F-250/F-350 4x4
• Rear Leaf Options (REQUIRED)
  • CS-FPAP-LVL-17 – Progressive Add-a-Pack – 1"" Lift – 17-24 Ford F-250/F-350 4x4
  • CS-FFSP-LVL-17 – Full Progressive Leaf Spring Kit – 1"" Lift – 17-24 Ford F-250/F-350 4x4
  • CS-FFSP-LVL-17-HD – HD +1000lbs Progressive Leaf Spring Kit – 1"" Lift – 17-24 Ford F-250/F-350 4x4
• Adjustable Radius Arms (OPTIONAL – Adds Tire Clearance, Strap Protection for Front Shocks)
  • CS-FARA-LVL-05 – Fabricated Radius Arms – 2.5""/3.5"" Lift – 05-22 Ford F-250/F-350 4x4
• High Mount Steering Stabilizer (OPTIONAL – Bolt-In Replacement for Factory Stabilizer)
  • CS-FHMSS-17 – High Mount Steering Stabilizer – 17-24 Ford F-250/F-350 4x4
• Low Mount Steering Stabilizer (OPTIONAL – Complements Carli or Factory High Mount Stabilizer)
  • CS-FLMSS-05 – Low Mount Steering Stabilizer Kit with Differential Guard – 05-22 Ford F-250/F-350 4x4
• Trophy Hitch (OPTIONAL – Allows Up to 38 in. Spare Tire in Factory Location)
  • CS-FHITCH-1723 – Ford Trophy Hitch – 17-24 Ford F-250/F-350 4x4
