This Pathfinder Lift System provides a 2.0 in. front lift for select Ram 2500 Power Wagon 4x4 models and is designed for excellent on-road comfort with light to moderate off-road capability. Positioned between the Backcountry and Pintop systems, the Pathfinder delivers improved suspension control, increased travel, and a composed daily-driving experience.

CS-D3-PF-CS-19-PW Pathfinder Lift System Features:

• Provides approximately 2.0 in. of front lift
• Increases usable suspension travel by approximately 50 percent over stock
• Taller, lighter-rate front coils improve ride comfort and compliance
• Carli SPEC 2.5 in. remote reservoir shocks improve damping and heat management
• Adjustable front track bar recenters the front axle
• Radius arm drop brackets restore caster and axle position
• Rear geometry corrections reduce axle yaw and improve stability
• Supports up to 37 in. tires with proper wheel fitment
• Designed for daily-driven trucks with light to moderate off-road use

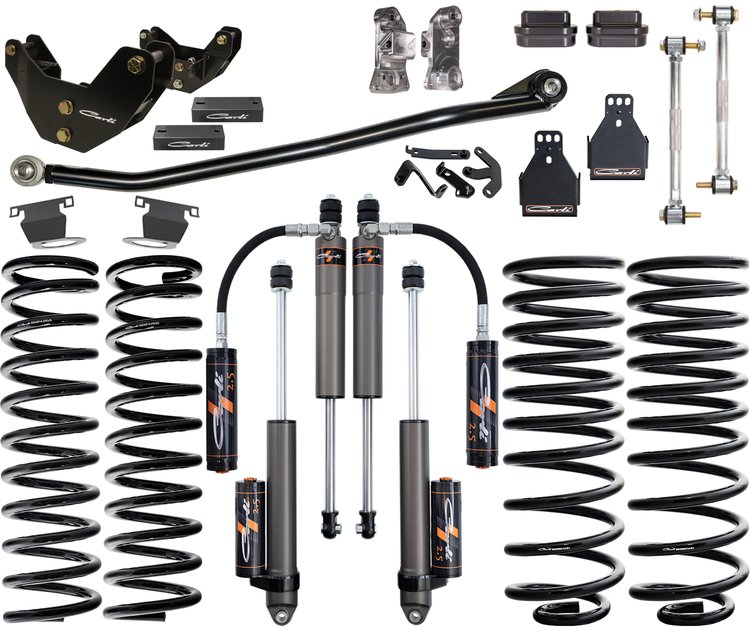

CS-D3-PF-CS-19-PW Pathfinder Lift System Includes:

• CS-DEL-R-14 - Rear Sway Bar End Links
• CS-DFBD-1 - Front Bump Stop Drops
• CS-DLRC-14-H - Front Linear-Rate Coil Springs
• CS-DMRC-14-R1 or R2 - Rear Multi-Rate Coil Springs
• CS-DATB-1419 - Adjustable Track Bar
• CS-DRAD-1419 - Radius Arm Drop Brackets
• CS-DPWSKIDBLK-14 - Power Wagon Skid Plate Drop Bracket
• CS-DRBD-AL - Rear Bump Stop Drops
• CS-D3SPKG-CS25RR-D - Carli SPEC 2.5 Remote Reservoir Shocks, Front and Rear
• CS-DVDBRKT-19 - Harmonic Damper Relocation Bracket
