Built for the daily-driven Power Wagon that isn’t afraid to stretch its legs off-road, the Carli-SPEC Backcountry 2.0 System with R1 coils offers enhanced suspension articulation and control. With 2.0 in. remote reservoir shocks and carefully tuned coils, it brings you a smooth ride on the road and a confident, composed feel on trails.

Carli-SPEC CS-D3-BC-CS-19-PW Backcountry System Features:

• Front Lift: 1.5–2 in., Rear Lift: 0.5–2 in.
• Front Travel: 9.6 in., Rear Travel: 11 in.
• Carli-SPEC 2.0 in. Remote Reservoir Shocks with Reservoir Mounts
• R1 Rear Multi-Rate Coil Springs with tuned road/off-road balance
• Ideal for 37 in. x 12.5 in. tires

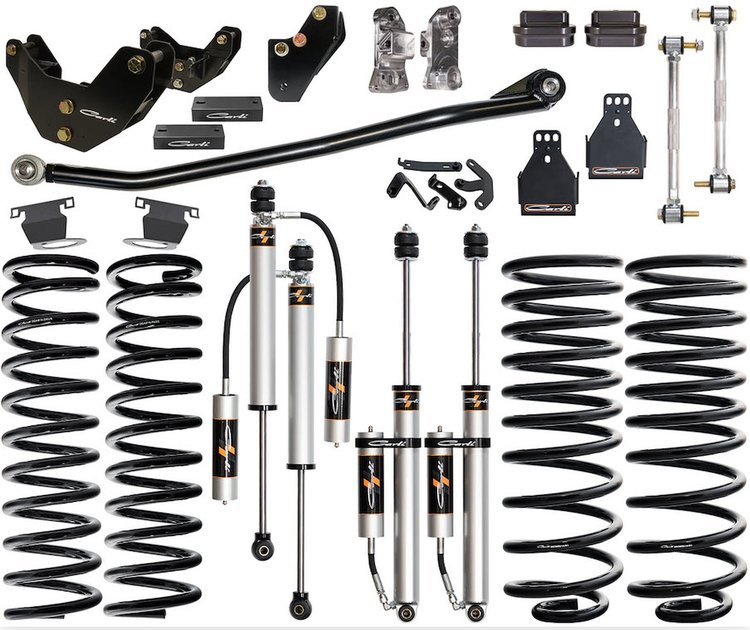

Carli-SPEC CS-D3-BC-CS-19-PW Backcountry System Includes:

• CS-DEL-R-14 – Rear Sway Bar End Links
• CS-DFBD-1 – Front Bump Drops
• CS-DLRC-14-H – 3 in. Front Linear-Rate Coil Springs
• CS-DMRC-14-R1 – Rear Multi-Rate Coil Springs, R1

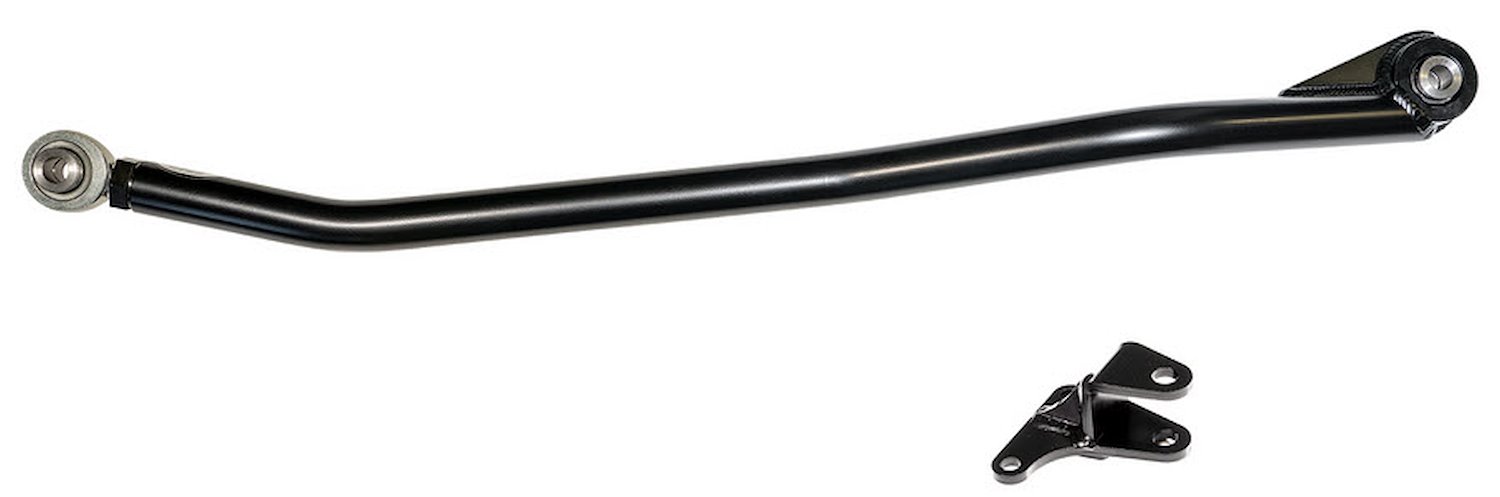

• CS-DATB-1419 – Adjustable Track Bar with Stabilizer Bracket
• CS-DRAD-1419 – Radius Arm Drops
• CS-DRBD-AL – Rear Bump Drops
• CS-DPRBDROP-14-R – Rear Track Bar Drop
• CS-DPWSKIDBLK-14 – Power Wagon Skid Plate Drop Bracket
• CS-DVDBRKT-19 – Hemi Active Tuned Mass Module Relocation
• CS-D3SPKG-CS20RR-F – Carli SPEC 2.0 in. Remote Reservoir Shocks, Front and Rear, Reservoir Mounts and Brake Line Tabs

Carli-SPEC CS-D3-BC-CS-19-PW Backcountry System Required and Optional Components:

• Sway Bar – OPTIONAL
  • CS-DTSB3-1419 – 2014-2024 RAM 2500/3500 4X4 Torsion Sway Bar – 3 in. Lift
• Fabricated Radius Arms – OPTIONAL
  • CS-DFRA-14 – 2014-2024 2500/3500 4X4 Fabricated Radius Arm System – 3.25 in. Lift
• Low Mount Steering Stabilizer – OPTIONAL
  • CS-DLMSS-14 – 2014-2024 RAM 2500/3500 4X4 Low Mount Steering Stabilizer – Stainless Steel
• High Mount Steering Stabilizer – OPTIONAL
  • CS-DHMSS-19 – 2014-2024 RAM 2500/3500 4X4 High Mount Steering Stabilizer Kit – Lifted
• Lifetime Ball Joints – OPTIONAL
  • CS-DBJP-14 – 2013-2024 RAM 2500/3500 4X4 Extreme Duty Ball Joints, Upper & Lower
